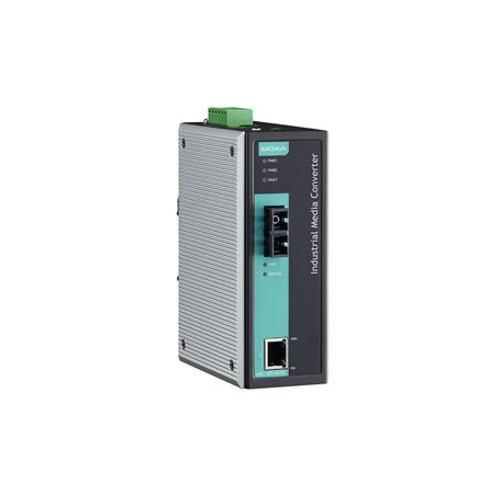

IMC-101-S-SC-T-IEX

MOXA IMC-101-S-SC-T-IEX

IMC-101 Series
Industrial Media Converter, single mode, SC, 40 km, -40 to 75°C, IECEx Certification Approval
Free Ground Shipping on U.S. Orders over $99 $588.83 ON BACKORDER Estimated Availability: 07/31/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-imc-101-series-datasheet-v1.7.pdf
  • 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
  • Link Fault Pass-Through (LFPT)
  • Power failure, port break alarm by relay output
  • Redundant power inputs
  • -40 to 75°C wide operating temperature range (-T models)
  • Designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx)
View More
Overview Specifications Accessories

Introduction

The IMC-101 industrial media converters provide industrial-grademedia conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors).The IMC-101 converters’ reliable industrial design is excellent forkeeping your industrial automation applications running continuously,and each IMC-101 converter comes with a relay output warning alarmto help prevent damage and loss. The IMC-101 media converters aredesigned for harsh industrial environments, such as in hazardous locations(Class 1, Division 2/Zone 2, IECEx), come with the DNV certification,and comply with FCC, UL, and CE standards. Models in the IMC-101 Seriessupport an operating temperature from 0 to 60°C, and an extended operatingtemperature from -40 to 75°C. All IMC-101 converters are subjectedto a 100% burn-in test.
