IMC-P101-S-ST-T

Moxa IMC-P101-S-ST-T

IMC-P101 Series
Industrial PoE Media Converter, single mode, ST connector, -40 to 75°C

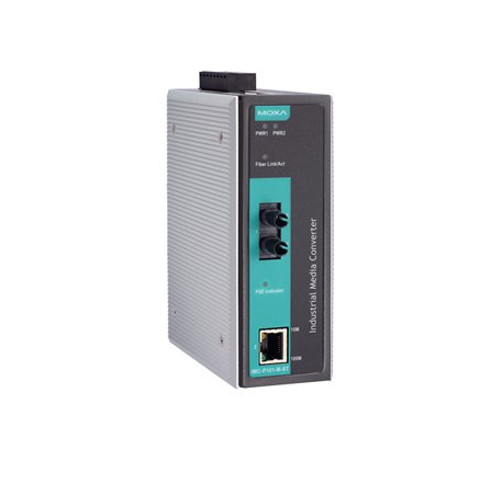

Image of IMC-P101-S-ST-T
Free Ground Shipping on U.S. Orders over $99 $1,115.12 IN STOCK: 0 Units

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-imc-p101-series-datasheet-v2.1.pdf
  • 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
  • IEEE 802.3af and PoE standard compliance
  • IEEE 802.3at and PoE+ standard compliance (HW Rev. 1.1.0 and later HW Rev, 1.1.0 complies with 802.23at (PoE Plus) and Rev. 1.0.1 802.23af (PoE) )
  • Power failure alarm by relay output
  • Supports store-and-forward mode and pass-through mode
  • -40 to 75°C operating temperature range (-T model)
  • Redundant dual DC power inputs
View More
Overview Specifications Accessories

Introduction

IMC-P101 Ethernet-to-fiber media converters provide Ethernet mediaconversion from 10/100BaseT(X) to 100BaseFX (with SC or ST connectors).These converters are classified as power source equipment (PSE), andwhen used in this way, they provide up to 30 Watts to powered devices(PDs), eliminating the need for additional wiring. The IMC-P101 converterssupport IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, andMDI/MDI-X auto-sensing, providing a complete solution for your industrialEthernet network.
