IMC-P21A-G2 Series

IMC-P21A-G2 Series

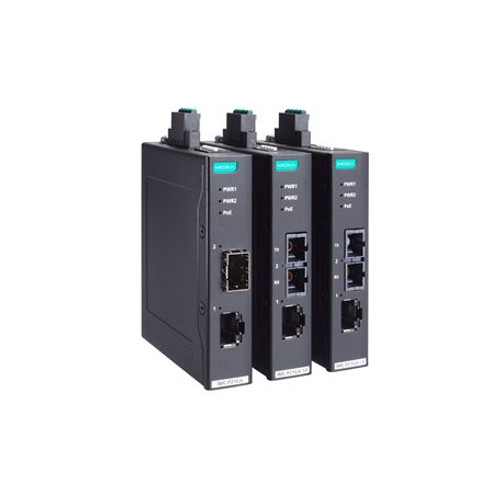

Image of IMC-P21A-G2 Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS

Features and Benefits

moxa-imc-p21a-g2-series-datasheet-v1.0.pdf
  • 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
  • IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standard compliance
  • Up to 36 W output on the PoE+ port
  • Supports store-and-forward mode and pass-through mode
  • -10 to 60°C operating temperature range
  • Redundant dual DC power inputs
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

IMC-P21A-G2 PoE+ Fast Ethernet-to-fiber media converters are designedto provide reliable and stable 10/100BaseT(X)-to-100Base-FX mediaconversion. These converters are classified as power source equipment(PSE) and are used to directly power up powered devices (PDs), eliminatingthe need for additional wiring.

The IMC-P21A-G2 PoE+ Fast Ethernet-to-fiber media convertersprovide up to 30 watts of power for PoE+ port in standard mode andallow highpower output of up to 36 watts for heavy-duty industrialPoE devices, such as weather-proof IP surveillance cameras with wipers/heaters,highperformance wireless access points, and IP phones. The IMC-P21A-G2media converters are highly versatile and with SC or ST fiber ports,can transmit data with high EMI immunity for up to 40 km from thedevice to the control center.

The PoE+ Fast Ethernet-to-fiber media converters support a varietyof useful functions, as well as PoE diagnostics, Link Fault Pass-through,storeand- forward mode, and pass-through mode. The IMC-P21A-G2 converterssupport IEEE 802.3/802.3u/802.3x with 10/100M and MDI/MDI-X autosensing,providing a complete solution for your industrial Ethernet networks.
