INJ-24A-T

Moxa INJ-24A-T

INJ-24A Series
Gigabit High-power PoE+ injector, max. output of 36W/60W @24 or 48VDC by 2-pair/4-pair mode, -40 to 75°C operating temperature

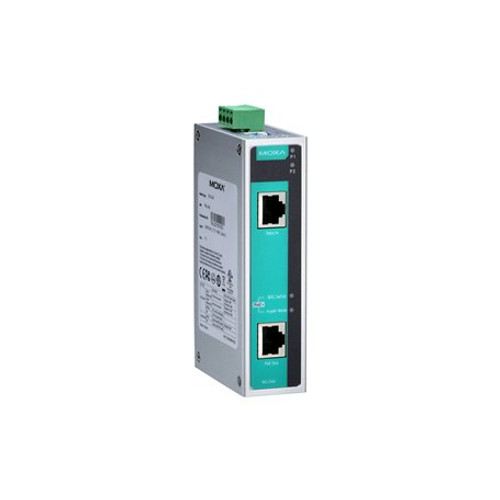

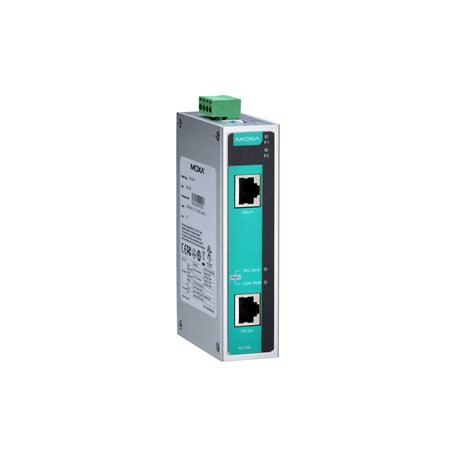

Image of INJ-24A-T
Free Ground Shipping on U.S. Orders over $99 $466.40 IN STOCK: 234 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-inj-24a-series-datasheet-v1.1.pdf
  • High-power mode provides up to 60 W
  • DIP switch configurator and LED indicator for PoE management
  • 3 kV surge resistance for harsh environments
  • Mode A and Mode B selectable for flexible installation
  • Built-in 24/48 VDC booster for redundant dual power inputs
  • -40 to 75°C operating temperature range (-T model)
View More
Overview Specifications Accessories

Introduction

The INJ-24A is a Gigabit high-power PoE+ injector that combines power and data and delivers them to a powered device over one Ethernet cable. Designed for power-hungry devices, the INJ-24A injector provides up to 60 watts, which is twice as much power as conventional PoE+ injectors. The injector also includes features such as a DIP switch configurator and LED indicator for PoE management, and it can also support 24/48 VDC power inputs for power redundancy and operational flexibility. The -40 to 75°C (-40 to 167°F) operating temperature capability makes the INJ-24A ideally suited to operating in harsh industrial environments.
