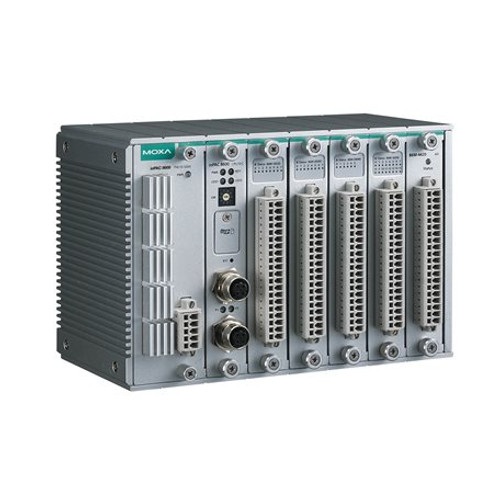

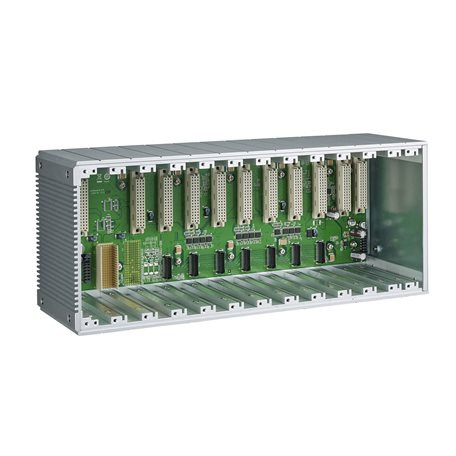

The ioPAC 8600 Series modular programmable controllersare 100% modular, giving you the freedom to choose the power, backplane,communication, and I/O modules you need for your application. In addition,the ioPAC 8600 enhances the hardware system architecture and key featuresof the ioPAC 8020 and ioPAC 8500 combined, and has an Ethernet buson the backplane to support Ethernet switch modules.
The ioPAC 8600 supportsthe C/C++ and IEC 61131-3 programming languages and ready-to-run services,including Modbus TCP/RTU, SNMP, data logging, and email alarms tofulfill different customer requirements. With active tag and MX-AOPCUA Suite data integration software, the ioPAC 8600 Series providesa comprehensive solution for data acquisition and control applicationsin harsh environments.
Moxa’s ioPAC 8600-CPU30 module is equipped with a new1GHz high-performance Cortex™ A8 CPU, which shortens the cycletime significantly, and allows users to run more programs simultaneously.With the CPU30 module’s 4 GB eMMC, the ioPAC 8600 can support morecommunication protocols for a wider range of scenarios. The CPU30also reserves up to 1.7GB of internal storage that gives usersthe freedom to develop more complex programs for specific ioPAC applications.As an added bonus, users can develop programs directly on the ioPAC. Additional customization is required.
Moxa’s ioPAC 8600 programmable controllers use a tag-centric design with ready-to-run services. The tag-centric design helps streamline the connection between the ioPAC 8600 controller and remote I/Os, and allows you to easily manage I/O status by implementing get/set routines to read-from/write-to tag values, even if you are not particularly familiar with PLC FBDs and APIs. The ready-to-run service allows programmers to rapidly configure services (SNMP, Modbus RTU/TCP, email alarms, etc.) without writing a single line of code, reducing the development of complicated communication applications to a few mouse clicks. The ioPAC 8600’s tag-centric design and ready-to-run service greatly increase an engineer’s productivity.
Moxa’s 2-wire Ethernet technology offers system integrators an attractive option for upgrading a train’s IP network to a 10/100 Mbps When using 2-wire technology, network performance is dependent on cable quality. Ethernet backbone with existing 2-wire cable. This innovative technology greatly reduces cable usage by providing 100 Mbps Ethernet transmission over only two wires, thereby reducing the train’s weight and improving energy efficiency. The 2-wire Ethernet switch module supports Ethernet bypass functionality, ensuring that the Ethernet backbone will continue to operate even if one ioPAC unit is without power. As an added bonus, by installing two 2-wire Ethernet modules in one ioPAC unit, the network can transmit at 200 Mbps and provide a redundant architecture.
The compact ioPAC 8600 programmable controller is well-suited for smaller sized installation spaces, and its lightweight design reduces energy consumption and allows the product to withstand the wear and tear of railway applications. However, the ioPAC’s small size does not limit its capabilities. The ioPAC 8600 is equipped with universal dual power inputs that support all railway power voltages. With support for both 85M and 86M modules, the ioPAC 8600 programmable controller can implement the wide variety of IO scenarios required by train applications. The ioPAC 8600 also supports a variety of communication interfaces, including Ethernet, serial, CAN, and HART. HART only available on a project basis. System integrators can control or monitor subsystems with the ioPAC 8600, which saves space and provides powerful functions that both fit within the system integrator’s budget and overcome installation difficulties.
