MOXA LIC-MXviewOne-NEW-XN-SR

Introduction

Moxa’s MXview One next-generation network managementsoftware is designed for monitoring and diagnosing networking devicesin industrial networks. MXview One provides an integrated managementplatform that can discover networking devices and SNMP/IP devicesinstalled on subnets. All selected network components can be managedvia a web browser from a local site or through remote access—anytimeand anywhere.

In addition,MXview One supports the optional MXview Wireless This feature requiresthe MXview Wireless add-on license (LIC-MXviewOne-ADD-WIRELESS-MR),which can be purchased separately. An active MXview One license isrequired in order to activate the add-on license. , MXview Power This feature requires the MXview Power add-on license (LIC-MXviewOne-ADD-POWER-MR),which can be purchased separately. An active MXview One license isrequired in order to activate the add-on license. , and MXviewSecurity This feature requires the MXview Security add-on license(LIC-MXviewOne-ADD-SECURITY-MR), which can be purchased separately.An active MXview One license is required in order to activate theadd-on license. add-on modules. MXview Wireless provides additionaladvanced functions for wireless applications to monitor and troubleshootyour network, and help you minimize downtime. MXview Power providesadditional advanced functions for power applications based on IEC61850 to monitor and troubleshoot substation networks in real-time.MXview Security provides additional advanced functions to enhancefield security, including centralized management and deployment offirewall policies, and updating cybersecurity packages.

Visualization

• Discovers up to 2,000 Moxa devices and SNMP/ICMP deviceswithin scan range

• Visualization of redundant link status and device rolesof network redundancy protocols

• Security view for the security status of network deviceswith industrial security standard

• A network management dashboard to view the network statusquickly

• Visualization of network traffic loading with color-codedlinks

• Visualization of managed PoE device power consumption

• SFP list for fiber check

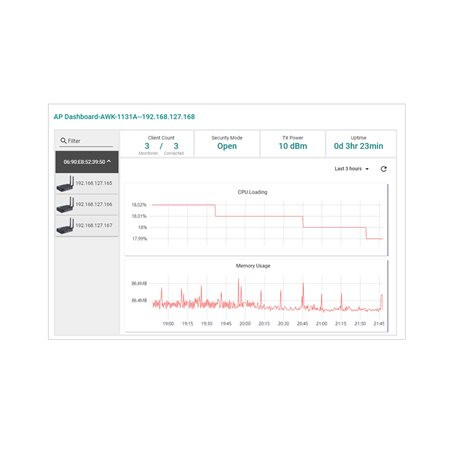

• Wireless device dashboard that shows dynamic AP-clientrelationships and performance indicator charts for wireless devices This feature requires the MXview Wireless add-on license (LIC-MXviewOne-ADD-WIRELESS-MR),which can be purchased separately. An active MXview One license isrequired in order to activate the add-on license.

• Roaming playback to review a client's roaming status This feature requires the MXview Wireless add-on license (LIC-MXviewOne-ADD-WIRELESS-MR),which can be purchased separately. An active MXview One license isrequired in order to activate the add-on license.

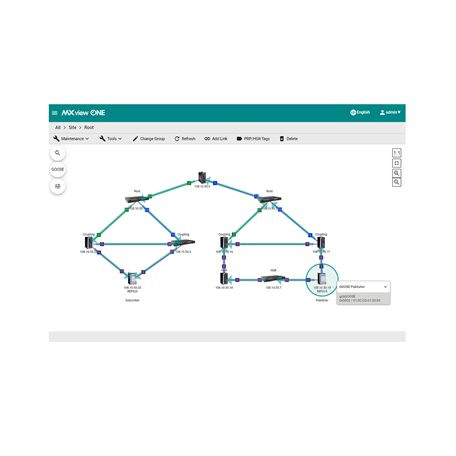

• PRP/HSR visualization for power applications compliantwith IEC-61850 This feature requires the MXview Power add-on license(LIC-MXviewOne-ADD-POWER-MR), which can be purchased separately. Anactive MXview One license is required in order to activate the add-onlicense.

• MMS protocol to identify related IED devices Thisfeature requires the MXview Power add-on license (LIC-MXviewOne-ADD-POWER-MR),which can be purchased separately. An active MXview One license isrequired in order to activate the add-on license.

Network Diagnostics and Event Notifications

• Detect problems in real-time with SNMP trap/inform, orperiodic polling

• Generate trend graphs to track bandwidth utilizationand error packet rate statistics, accurate to four decimal places

• Supports Syslog server for centralized message management

• Configurable event notification alarms sent through email

• Multiple options for events with self-defined thresholdand duration

• Real-time device availability monitoring

• Provides RESTful API and web widget for integrating MXviewOne into the existing system

Comprehensive Reports

• Generate an inventory report for each device on the network

• Compile comprehensive device properties report

Centralized Configuration and Firmware Management

• Managedevice firmware from a single platform

• Inone click, back up the configuration of multiple devices and the entireMXview One database, including topology, job scheduling, events, anddevice properties

• Schedulingfor periodic configuration backup

• Savehistory of configuration changes

• Comparisontool for checking differences between two configurations

Flexible Licenses

• Demand-based licenses to increase node limit for monitoring

• Optional MXview Wireless, MXview Power, and MXview Securityadd-on licenses to unlock advanced functions

Device Mass Configuration

• Run CLI scripts and configure customizable automationbuttons

• Device management with quick access buttons to easilyperform specific actions on devices

Account and Password Management

• View device accounts, conduct account and default passwordaudits, and create temporary accounts for specific devices

• Generate and apply randomized passwords to multiple selectedMoxa devices manually or via an automated schedule

Inventory Management

• Show warranty information for Moxa devices and configurewarranty expiration notifications

• Rogue device detection to identify connected devicesthat are not in the current topology

Northbound Interface Integration

• Act as an OPC UA server to transmit information to OPCclients

• Syslog forwarding to send syslog events to a user-specifiedserver
