MAT-WDB-PA-NF-2-0708

MOXA MAT-WDB-PA-NF-2-0708

MAT-WDB-PA-NF-2-0708 Series
MIMO 2x2, 2.4/5 GHz, dual-band panel antenna, 7/8 dBi, N-type (female)

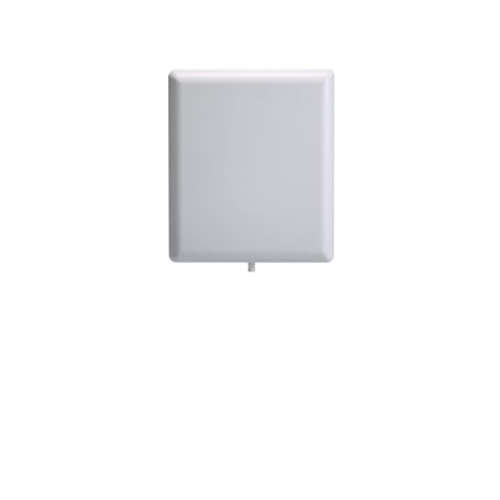

Image of MAT-WDB-PA-NF-2-0708
Free Ground Shipping on U.S. Orders over $99 $335.03 ON BACKORDER Estimated Availability: 09/03/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-mat-wdb-pa-nf-2-0708-series-datasheet-v1.0.pdf
  • Lightweight
  • Compact form factor
  • Pole-mounting support
  • -40 to 75°C operating temperature range
View More
Overview Specifications Accessories

Introduction

The MAT-WDB-PA-NF-2-0708 antenna is a compact MIMO 2x2 dual-band panel antenna with an N-type (female) connector. The antenna can be used in both the 2.4 GHz and 5 GHz frequencies and provides a gain of 7/8 dBi.

Field Patterns

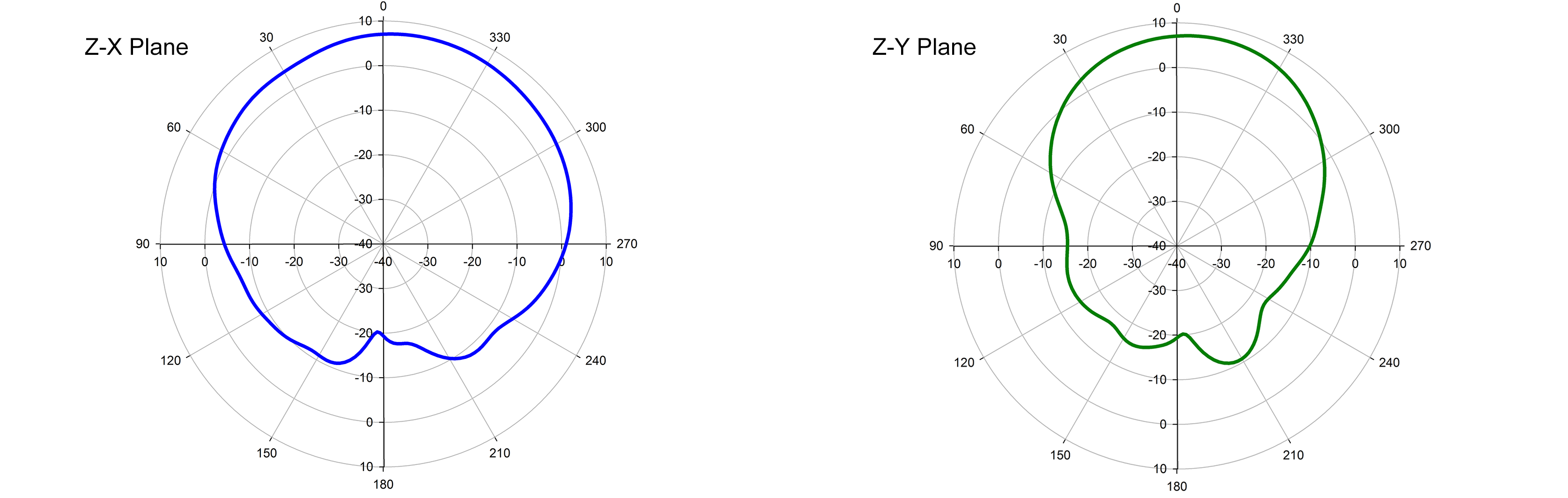

Port 1 Frequency: 2.4 GHz

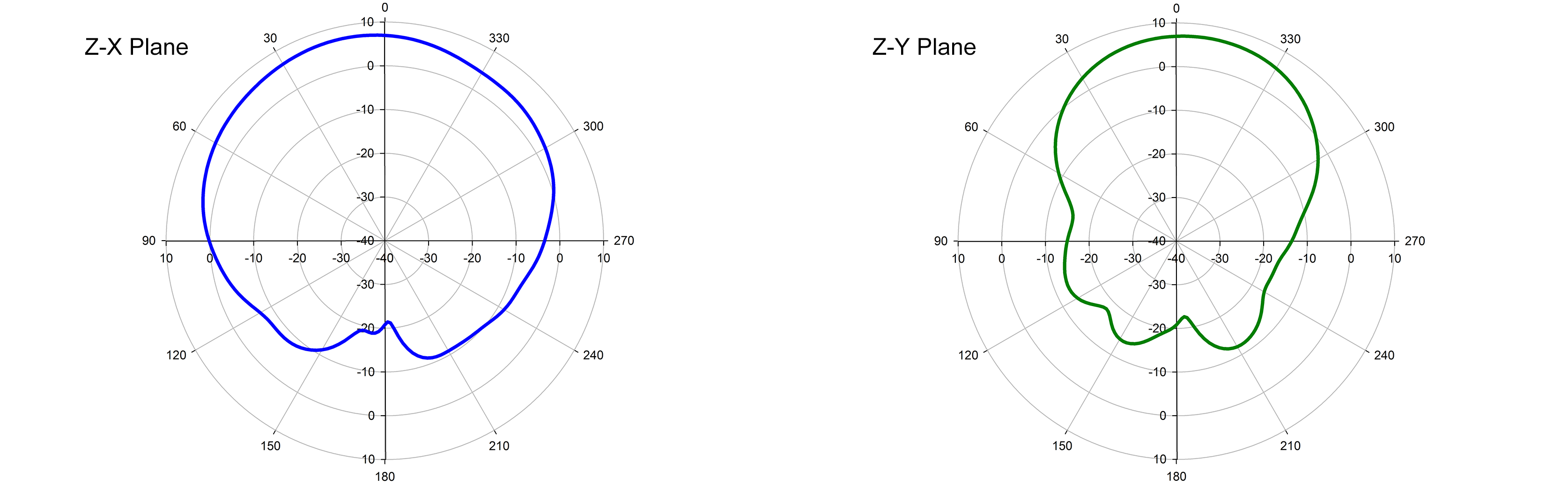

Port 2 Frequency: 2.4 GHz

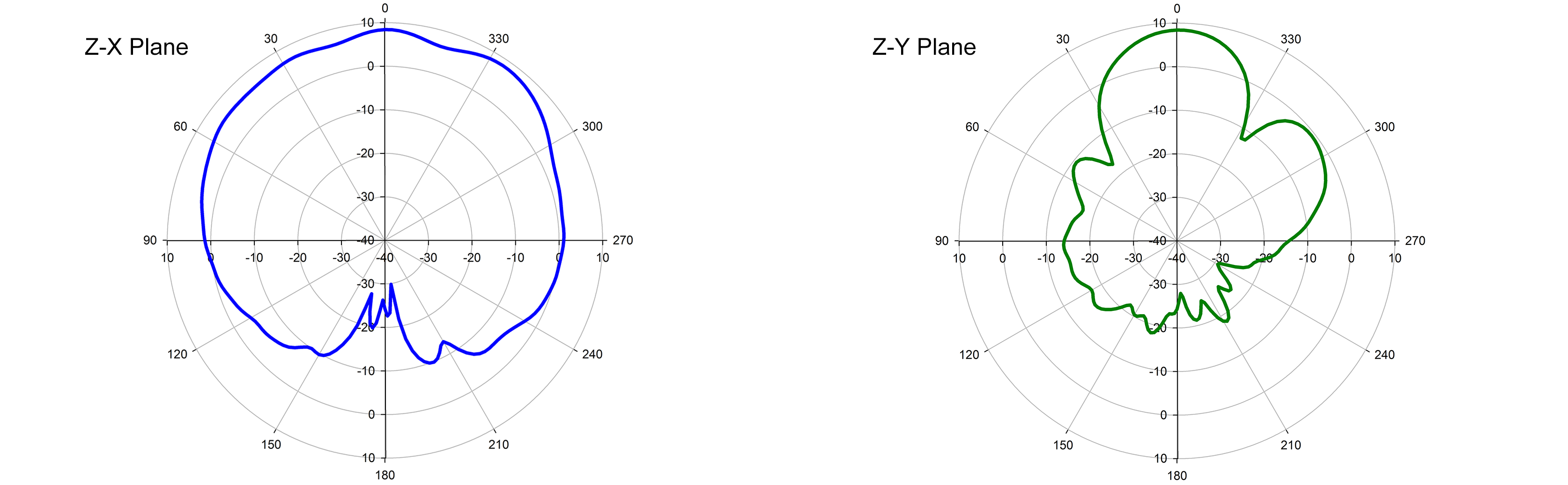

Port 1 Frequency: 5 GHz

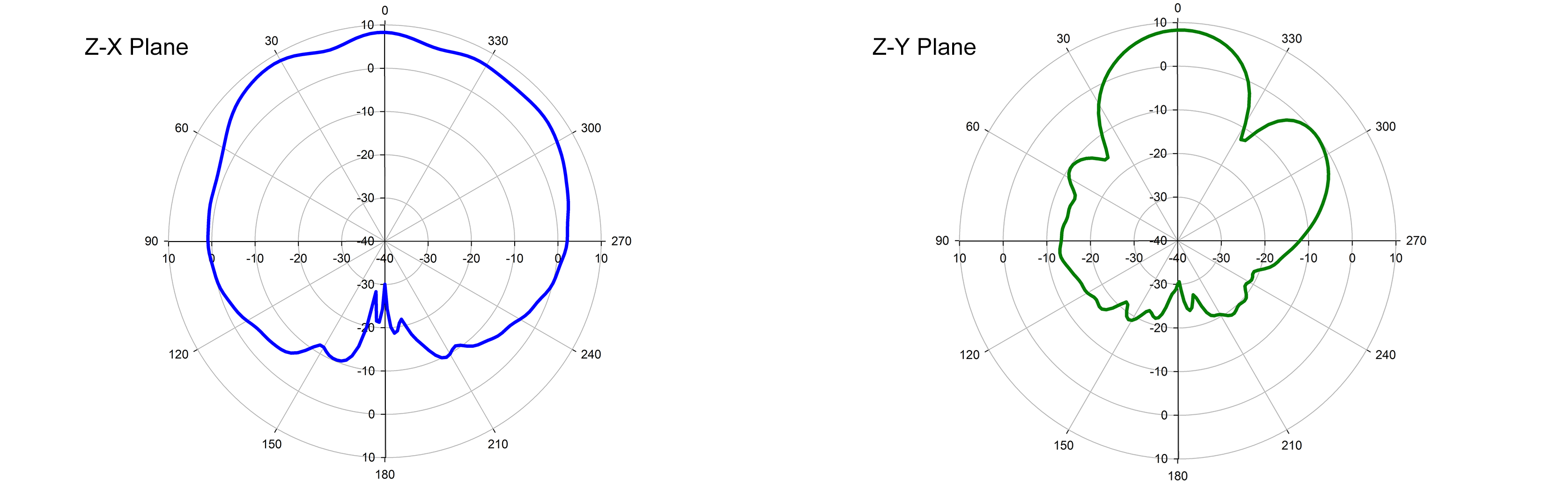

Port 2 Frequency: 5 GHz
