Moxa MC-1112-E4-T
MC-1100 SeriesPlease contact us via sales@neteon.net or 888-908-3330 for other product options.
ON ORDER: 22 UnitsFeatures and Benefits
- Intel Atom Quad-core E3845 processor
- Dual storage (SD and CFast slots)
- Dual independent displays (VGA + display port)
- Variety of interfaces: 2 serial ports, 4 Giga LANs, 4 DIs, 4 DOs, 2 USB 2.0 ports
- Mini-PCIe sockets for Wi-Fi, 3G, LTE, GPS
- 12 to 36 VDC, wide-range isolated power input
- -40 to 70°C system operating temperature range
- Moxa Smart Recovery utility to recover system from boot failure (W7E only)
- Marine-grade and ATEX, IECEx Zone 2 compliance
Introduction
The MC-1100 Series DIN-rail mountable, fanless,x86 embedded computers use the Intel Atom® E3800 Series processor,feature the most reliable I/O design to maximize connectivity, andsupport wireless modules (Wi-Fi/3G/LTE), making them suitable fora diverse range of communication applications.
The MC-1100’s wide operating temperaturerange (-40 to 70°C) and safety/EMI/EMS compliances make it ideal forintelligent computing and communication solutions in critical environments,including marine communication, oil and gas field site monitoring,and transportation.
The MC-1100 Series supports the Moxa Proactive Monitoring tool fordevice I/O status monitoring and alerts, system temperature monitoringand alerts, and system power management. Close monitoring of the systemstatus makes it easier to recover from errors and provides the mostreliable platform for your applications.
The MC-1100 Series is MicrosoftAzure Certified for IoT. It can leverage the Microsoft reference configurationand has been tested to work with Microsoft Azure IoT services forIndustrial IoT applications.
For more information on the Azure Certified forIoT program, visit: https://catalog.azureiotsuite.com/_newlineA complete list of Moxa’s Azure Certified for IoT products is availableat: https://catalog.azureiotsuite.com/?q=moxa
Appearance

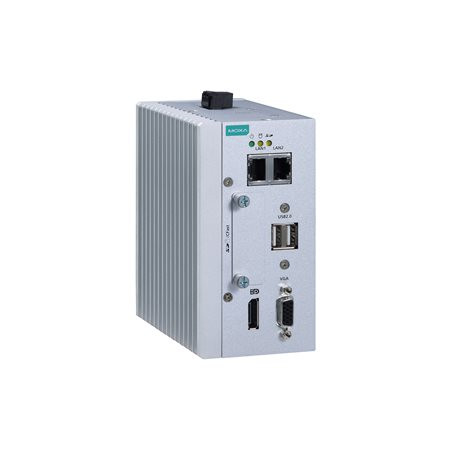

MC-1111

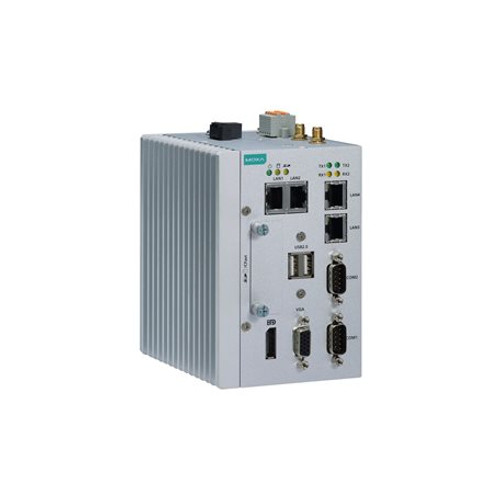

MC-1121

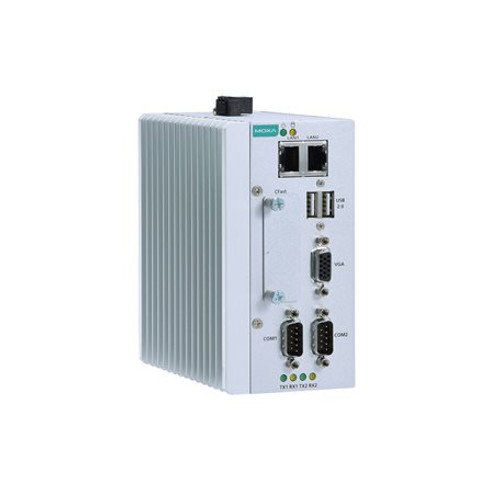

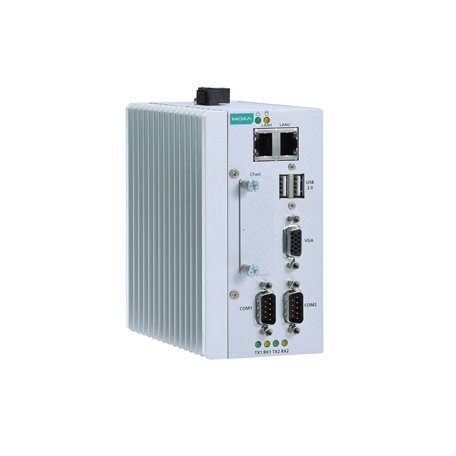

MC-1112

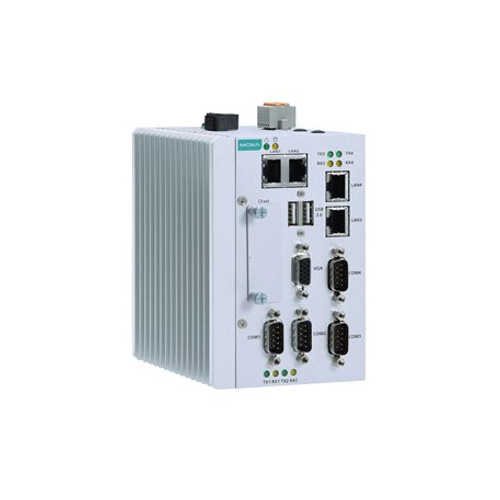

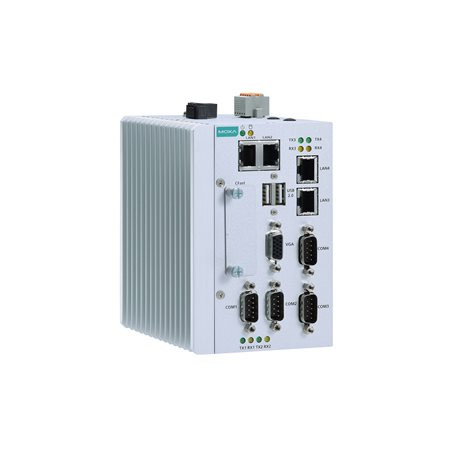

MC-1122
