MC-7420-C7-DC

Moxa MC-7420-C7-DC

MC-7400 Series
Intel 6th Gen Core CPU marine computer with DNV GL certification, 3 independent display ports (1 x DVI-I, 1 x DVI-D, 1 x DisplayPort), mini PCIe expansion slot for wireless, and 4 NMEA 0183 ports, DC power input
MC-7420-C7-DC
Free Ground Shipping on U.S. Orders over $99 $4,346.21 ON BACKORDER Estimated Availability: 02/27/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-mc-7400-series-datasheet-v1.5.pdf
  • 6th Gen Intel® Core™ i5/i7 processor
  • DDR4 SO-DIMM memory up to 32 GB
  • 3 independent displays (1 x DVI-I, 1 x DVI-D, 1 x DisplayPort)
  • Various I/O interfaces, including 9 USB ports, 5 LAN ports, and 4 COM ports
  • 2 removable 2.5” SSD storage bays
  • AC or DC power models available
  • Supports Win 10 IoT and Debian 9 operating systems
  • Supports Moxa Proactive Monitoring utility for system status monitoring
View More
Overview Specifications Accessories

Introduction

The MC-7400 Series marine computers are poweredby the 6th generation Intel® Core™ i5/i7 processor, delivering a fullrange of I/O connectivity, including NMEA 0183 ports, serial ports,Gigabit Ethernet ports, as well as USB 2.0/3.0 ports and a miniPCIslot for extensions. The MC-7400 is designed to provide outstandingPC performance, bringing a new level of flexibility and control tomarine applications.

Proactive Monitoring Function

Moxa Proactive Monitoring is a small-footprint, resource-friendly, easy-to-use utility that allows users to track a number of system parameters. Users can view the current parameter values for these key parts by simply clicking on the icons corresponding to the parameters in the user interface. User-defined key part indicators (KPIs) are used to monitor the computer’s key parts. Visible and/or audio alerts are triggered automatically via relay and SNMP traps when these KPIs exceed their preset threshold values, making it extremely convenient for operators to avoid system downtime by setting up predictive maintenance tasks well in advance.

Appearance

MC-7410 AC Model

MC-7410 DC Model

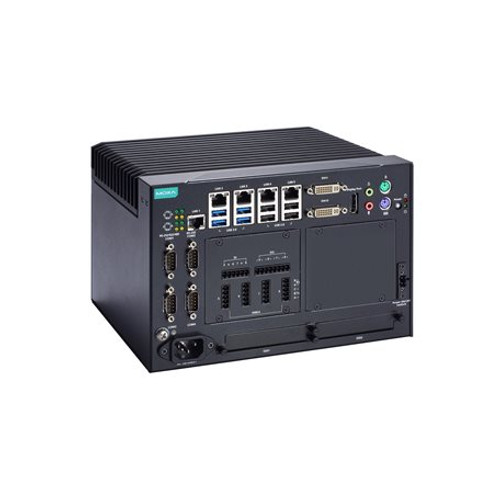

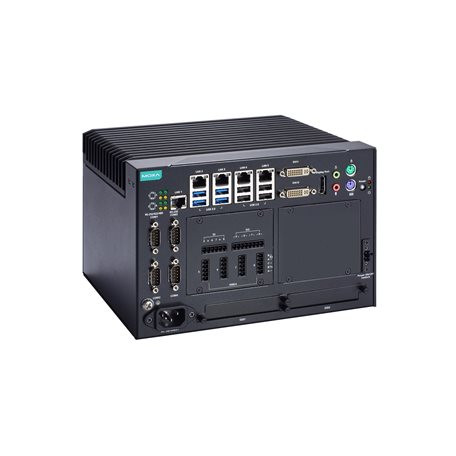

MC-7420 AC Model

MC-7420 DC Model
