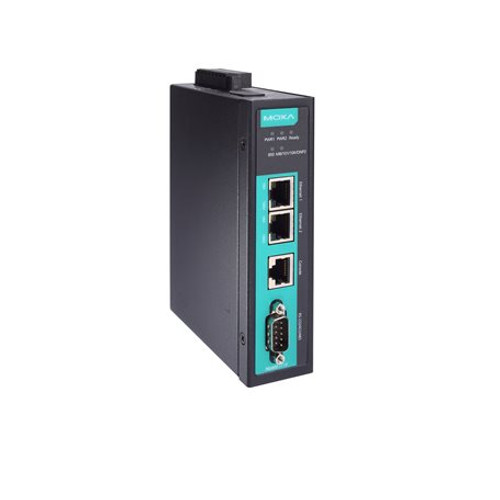

MGate 5119 Series

Moxa MGate 5119 Series

1-port DNP3/IEC 101/IEC 104/Modbus-to-IEC 61850 gateways
MGate 5119 Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-mgate-5119-series-datasheet-v1.1.pdf
  • Supports IEC 61850 MMS server
  • Supports DNP3 serial/TCP master
  • Supports IEC 60870-5-101 master (balanced/unbalanced)
  • Supports IEC 60870-5-104 client
  • Supports Modbus RTU/ASCII/TCP master/client
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting
  • Built-in Ethernet cascading for easy wiring
  • -40 to 75°C operating temperature range
  • Serial port with 2 kV isolation protection
  • Supports IEC 61850 MMS and DNP3 TCP protocol encryption
  • Security features based on IEC 62443/NERC CIP
  • Compliant with IEC 61850-3 and IEEE 1613
  • Built-in SCL file generator for easy configuration
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

The MGate 5119 is an industrial Ethernet gateway with2 Ethernet ports and 1 RS-232/422/485 serial port. To integrate Modbus,IEC 60870-5-101, and IEC 60870-5-104 devices with an IEC 61850 MMSnetwork, use the MGate 5119 as a Modbus master/client, IEC 60870-5-101/104master, and DNP3 serial/TCP master to collect and exchange data withIEC 61850 MMS systems.

Easy Configurationvia SCL Generator

The MGate 5119 as an IEC 61850 MMS server, typically, requires theimport of a SCL file generated by a 3rd party tool. This can be time-consumingand increase costs. To overcome this pain point, MGate 5119 has abuilt-in SCL generator, which can easily generate SCL files throughthe web console and make them available almost immediately savingconfiguration time and cost.

Easy Troubleshootingvia Traffic Monitor

MGate 5119 Series gateways support Modbus RTU/ASCII/TCP, IEC 60870-5-101,IEC 60870-5-104, and IEC 61850 MMS Protocol Traffic Monitor for easytroubleshooting, especially during the installation stage. It is worthmentioning that traffic logs can be viewed in the popular troubleshootingtool, Wireshark. With this feature, you can easily analyze trafficto determine the root cause of a problem.
