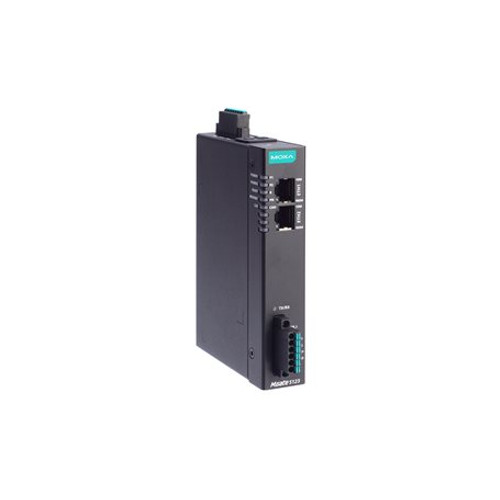

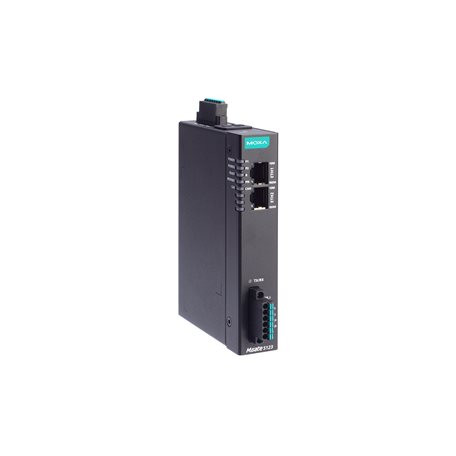

The MGate 5123 is an industrial Ethernet gateway forconverting CANopen or J1939 to PROFINET network communications. Tointegrate existing CANopen or J1939 devices onto a PROFINET network,use the MGate 5123 as a CANopen or J1939 master to collect data andexchange data with the PROFINET IO controller. All models are protectedby a rugged and compact metal housing and are DIN-rail mountable.The rugged design is suitable for industrial applications such asfactory automation and other process automation industries.
The MGate 5123 gateways are provided with a web consoleto make configuration easy without having to install an extra utility.In addition, HTTPS encryption of communication ensures higher networksecurity.
In most data-acquisitionapplications, configuration of CANopen devices can be time-consumingand increase costs. The MGate 5123 gateways provide EDS file importfunction and user can auto scan the CANopen devices to help completethe settings quickly. The MGate gateways provide software-configurabletermination resistor settings for CANbus to reduce efforts by eliminatingthe need to open the chassis.
The MGate 5123 gateways provide a variety of maintenancefunctions to reduce troubleshooting time and cost, including LED indicators,protocol diagnostics, traffic monitor, and tag view. These tools helpyou capture and check data to easily identify the root cause of issues,especially during the installation stage. The MGate gateways alsocome with status monitoring and fault protection functions. The statusmonitoring function notifies a PLC/DCS/SCADA system when a CAN devicegets disconnected or does not respond, in which case the process PLC/DCSgets the status of each end device and then issues alarms to notifyoperators. The fault protection function executes actions pre-definedby the user when a host gets disconnected to prevent the end devicesfrom going offline for long periods of time.
