MGate 5134-T

Moxa MGate 5134-T

MGate 5134 Series
MGate 5134-T ; 1-port Modbus RTU/ASCII/TCP-to-PROFINET gateways, -40 to 75°C operating temperature

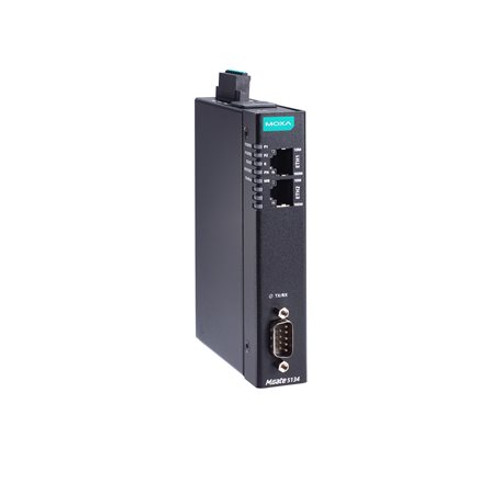

Image of MGate 5134-T
Free Ground Shipping on U.S. Orders over $99 $766.00 ON BACKORDER Estimated Availability: 02/25/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-mgate-5134-series-datasheet-v1.1.pdf
  • Protocol conversion from Modbus to PROFINET
  • Supports PROFINET IO device
  • Supports Modbus RTU/ASCII/TCP client
  • Flexible deployment with Ethernet cascading and dual subnet
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting
  • Easy device configuration via a web-based console
  • microSD card for configuration backup/duplication
  • Supports dual redundant DC power inputs and 1 relay output
  • Serial port with 2 kV isolation protection
  • -40 to 75°C wide operating temperature models available
  • Developed according to IEC 62443-4-2 with Secure Boot
View More
Overview Specifications Accessories

Introduction

The MGate 5134 is an industrial Ethernet gateway forconverting Modbus RTU/ASCII/TCP to PROFINET network communications.To integrate existing Modbus devices onto a PROFINET network, usethe MGate 5134 as a Modbus client to collect data and exchange datawith the PROFINET host. All models are protected by a rugged and compactmetal housing, are DIN-rail mountable, and offer built-in serial isolation.The rugged design is suitable for industrial applications such asfactory automation, power, oil and gas, water and wastewater, andother process automation industries.

Easy Configuration

The MGate 5134 gateways are provided with a web consoleto make configuration easy without having to install an extra utility.In addition, HTTPS encryption of communication ensures higher networksecurity. In most data-acquisition applications, configuration ofdevices with Modbus commands can be time-consuming and increase costs.The MGate 5134 gateways provide offline configuration via a CSV fileto help complete the Modbus settings quickly. The gateways also comewith a GSDML export function to enable export of these files so thatthey can be imported to PROFINET PLCs. The MGate gateways providesoftware-configurable pull high/low and termination resistor settingsfor RS-485 2-wire to reduce efforts by eliminating the need to openthe chassis.

Easy Troubleshooting

The MGate 5134 gateways provide a variety of maintenancefunctions to reduce troubleshooting time and cost, including LED indicators,protocol diagnostics, traffic monitor, and tag view. These tools helpyou capture and check data to easily identify the root cause of issues,especially during the installation stage. The MGate gateways alsocome with status monitoring and fault protection functions. The statusmonitoring function notifies a PLC/DCS/SCADA system when a Modbusdevice gets disconnected or does not respond, in which case the processPLC/DCS gets the status of each end device and then issues alarmsto notify operators. The fault protection function executes actionspre-defined by the user when a host gets disconnected to prevent theend devices from going offline for long periods of time..
