MGate 5192 Series

MGate 5192 Series

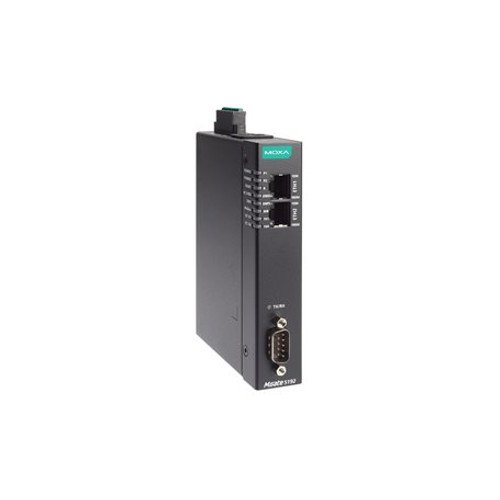

Image of MGate 5192 Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS

Features and Benefits

moxa-mgate-5192-series-datasheet-v1.0.pdf
  • Supports IEC 61850 MMS client
  • Supports DNP3 serial/TCP/UDP outstation
  • Supports IEC 60870-5-101 server
  • Supports IEC 60870-5-104 client
  • Supports Modbus RTU/ASCII/TCP server
  • Flexible deployment with Ethernet cascading and dual subnet
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting
  • Easy device configuration via a web-based console
  • microSD card for configuration backup/duplication
  • Supports dual redundant DC power inputs and 1 relay output
  • Serial port with 2 kV isolation protection
  • -40 to 75°C wide operating temperature models available
  • Developed according to IEC 62443-4-2 with Secure Boot
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

The MGate 5192 is an industrial protocol gateway forconverting IEC 61850 MMS to Modbus RTU/ASCII/TCP, DNP3 serial/TCP/UDP,IEC 60870-5- 101, or IEC 60870-5-104 communications. To integrateexisting IEC 61850 devices, such as IEDs or relays, into a Modbus,DNP3, IEC 101, or IEC 104 network, use the MGate 5192 as an IEC 61850MMS client to collect and exchange data with Modbus RTU/ASCII/TCP,DNP3 serial/TCP/UDP, IEC 60870-5-101, or IEC 60870-5-104 SCADA/devices.All models are protected by a rugged and compact metal housing, areDIN-rail mountable, and offer built-in serial isolation. The ruggeddesign is suitable for industrial applications such as power substationand renewable energy-related applications.

Easy Configuration

The MGate 5192 gateways are provided with a web consoleto make configuration easy without having to install an extra utility.In addition, HTTPS encryption of communication ensures higher networksecurity. In most data-acquisition applications, configuration ofdevices with Modbus commands can be time-consuming and increase costs.The MGate 5192 gateways provide offline configuration via a CSV fileto help complete the Modbus settings quickly. The MGate gateways providesoftware-configurable pull high/low and termination resistor settingsfor RS-485 2-wire to reduce efforts by eliminating the need to openthe chassis.

Easy Troubleshooting

The MGate 5192 gateways provide a variety of maintenancefunctions to reduce troubleshooting time and cost, including LED indicators,protocol diagnostics, traffic monitor, and tag view. These tools helpyou capture and check data to easily identify the root cause of issues,especially during the installation stage. The MGate gateways alsocome with status monitoring and fault protection functions. The statusmonitoring function notifies a SCADA system when a IEC 61850 devicegets disconnected or does not respond, in which case the process SCADAgets the status of each end device and then issues alarms to notifyoperators. The fault protection function keeps the latest data withoutsending output data to the IEC 61850 devices. When a SCADA gets disconnected,the end devices keep the last operation and do not go offline.

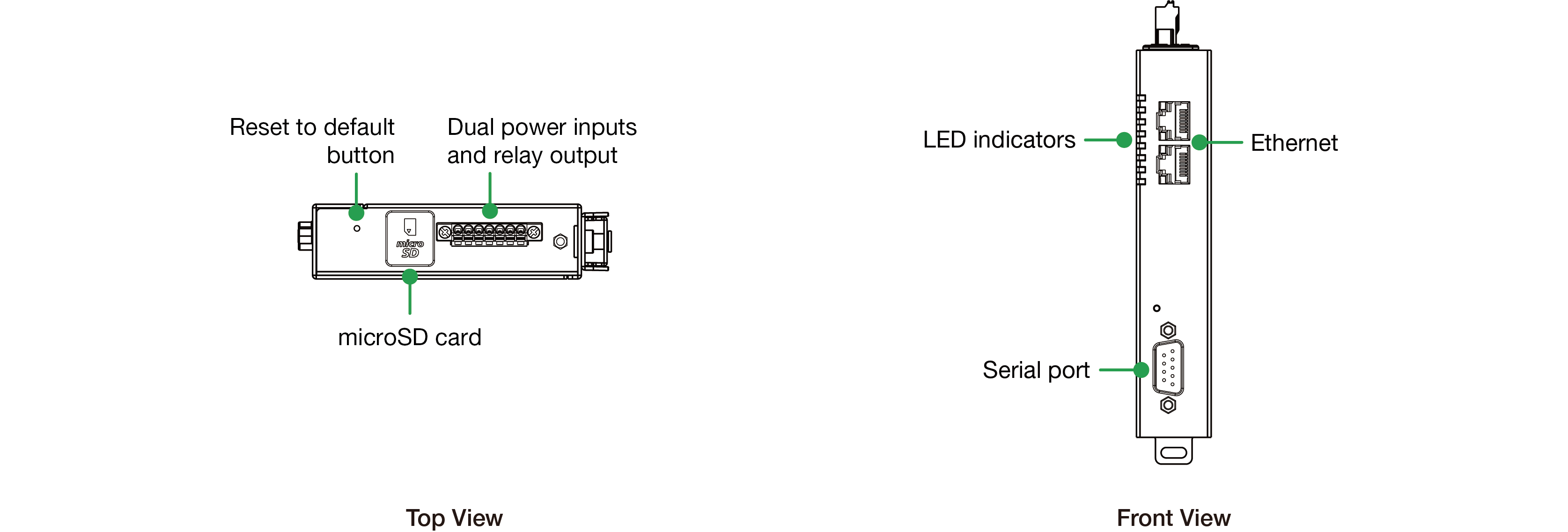

Appearance
