MGate 5216 Series

MGate 5216 Series

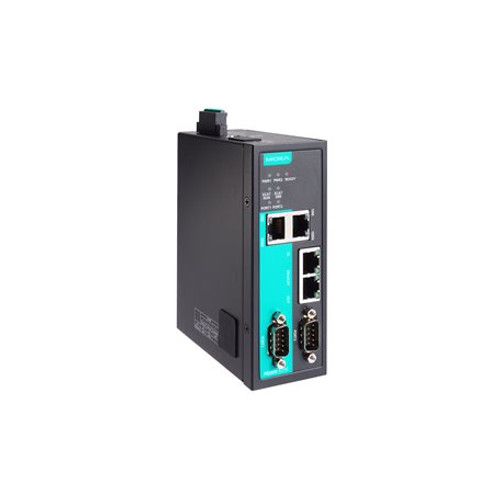

Image of MGate 5216 Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS

Features and Benefits

moxa-mgate-5216-series-datasheet-v1.0.pdf
  • Protocol conversion from proprietary serial or Modbus to EtherCAT
  • Supports EtherCAT slave
  • Supports Modbus RTU/ASCII client
  • Maximum data input and output of 512 bytes
  • Serial port with 2 kV isolation protection
  • Supports MicroPython programming for proprietary serial
  • Built-in Ethernet cascading for easy wiring
  • Supports redundant dual DC power inputs and 1 relay output
  • Security features based on IEC 62443-4-2
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

MGate 5216 Series EtherCAT industrial Ethernet gatewaysconvert data between Modbus RTU/ASCII, proprietary serial and EtherCATprotocols. All models are protected by a rugged metal housing, areDIN-rail mountable, and offer built-in serial isolation.

Modbus is one of the most widelyused industrial communication protocols, and EtherCAT is commonlyused in factory automation and semiconductor fields. MGate 5216 supportsboth Modbus RTU/ASCII client and MicroPython enabling programmingin proprietary serial protocol, so that you can easily connect yourModbus devices or serial devices to EtherCAT host.

The MGate 5216 EtherCAT gatewaysare designed for easy configuration and quick maintenance. An intuitiveweb console can be used to implement remote maintenance tasks. A comprehensivecollection of troubleshooting tools reduces configuration time andsystem downtime and the rugged design is suitable for industrial applications.

Easy Configuration

The MGate 5216 EtherCAT gateways have a user-friendlyinterface that lets you quickly set up protocol conversion routinesfor most applications, doing away with what were often time-consumingtasks in which users had to implement detailed parameter configurationsone by one. The MGate 5216 supports web console for remote maintenance.Encryption communication functions, including HTTPS, are supportedto provide better network security. In addition, system monitoringfunctions are provided to record network connections and system logevents.

Easy Maintenance With Built-in Functions

The MGate 5216 supports Protocol Diagnose and TrafficMonitor for easy troubleshooting, especially during the installationstage. Serial communication issues caused by incorrect software parameters,such as slave IDs and register addresses, or incorrect command configurations,can be fished out with Protocol Diagnose and Traffic Monitoring, whichlet you capture and check data to easily identify root causes.
