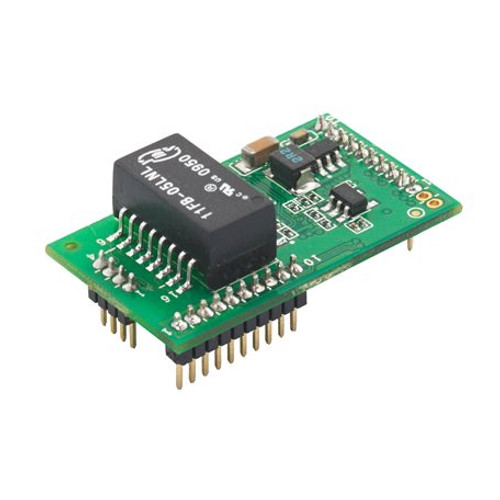

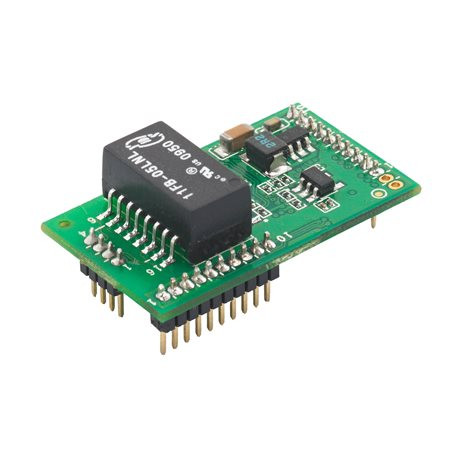

Moxa MiiNePort E2 Series

10/100 Mbps embedded pin header module serial device servers
MiiNePort E2 Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-miineport-e2-series-datasheet-v1.5.pdf
  • Smallest embedded device server available—only 29 x 17 x 12.6 mm
  • Supports EZPower for 3.3 to 5 VDC system power input
  • Green design with extremely low power consumption
  • Uses Moxa’s high-quality and reliable second-generation MiiNe SoC
  • MiiNePort NetEZ technology makes integration incredibly easy
  • Operation versatility with Real COM/TCP/UDP/RFC2217/MCSC
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

Moxa’s MiiNePort E2 Series embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices with minimal integration effort. The MiiNePort E2 is empowered by the MiiNe, Moxa’s second-generation SoC, which supports 10/100 Mbps Ethernet, delivers a serial baudrate of up to 921.6 kbps, offers a versatile selection of ready-to-use operation modes, and requires a minimal amount of power. With Moxa's innovative NetEZ technology, the MiiNePort E2 can convert any device with a standard serial interface to an Ethernet-enabled device. In addition, the MiiNePort E2 is the smallest embedded device server without an RJ45 connector, making it easy to fit into virtually any existing serial device.

Moxa’s Second-generation SoC

The MiiNe was created toprovide manufacturers with a competitive embedded serial-to-Ethernetsolution. The MiiNePort E2, which uses the MiiNe for its SoC, is oneof the world’s tiniest embedded device servers and has the lowestpower consumption among similar products. The MiiNe’s features include:

  • Cost-effective serial-to-Ethernet conversions

  • Arm core

  • Advanced UART technology

  • Internal 2 MB Flash and 4 MB SDRAM memory
