MPC-2101-E4-LB-CT-T

Moxa MPC-2101-E4-LB-CT-T

MPC-2101 Series
10-inch panel computer with Intel Atom E3845 1.91 GHz, 4 GB RAM, 500-nit LCD with multi-touch, 24 to 110 VDC, IP66, EN 50155, -40 to 70°C operating temperature

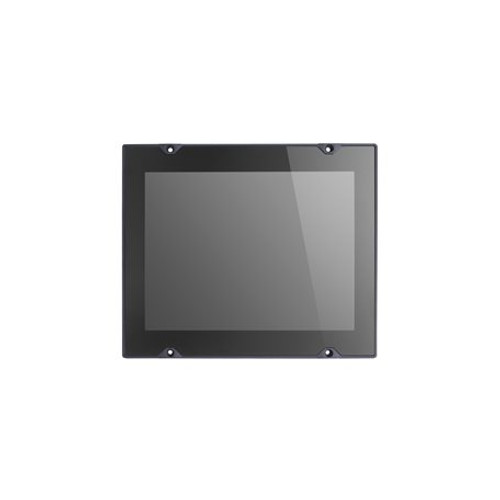

Image of MPC-2101-E4-LB-CT-T
Free Ground Shipping on U.S. Orders over $99 $3,670.80 ON BACKORDER Estimated Availability: 02/23/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-mpc-2101-series-datasheet-v1.3.pdf
  • 10-inch panel computer
  • Intel Atom® processor E3845 1.91 GHz
  • 1000-nit sunlight-readable LCD
  • -40 to 70°C wide-temperature design, no fan or heater
  • EN 50155:2017 Compliant
View More
Overview Specifications Accessories

Introduction

The MPC-2101 10-inch panel computers with E3800Series Intel Atom® processor deliver a reliable, durable, and versatileplatform for use in industrial environments. All interfaces come withIP66-rated M12 connectors to provide anti-vibration and waterproofconnections. With two software-selectable RS-232/422/485 serial portsand two Ethernet LAN ports, the MPC-2101 panel computers support awide variety of serial interfaces as well as high-speed IT communications,all with native network redundancy.

The MPC-2101 Series panel computersare designed with a wide, -40 to 70°C temperature range, and comewith a fanless, streamlined enclosure designed for highly efficientheat dissipation, making this one of the most reliable industrialplatforms available for vibration prone, harsh, hot, outdoor environments.The MPC-2101 also features a 1000-nit LCD panel offering a sunlightreadable, projected-capacitive, multi-touch screen, providing an excellentuser experience.

Appearance
