MRX-Q4064 Series
MRX-Q4064-L3-16XGS ; L3 modular switches with 16 fixed 10G SFP+ ports, 3 module slots, 2 power modules slots, -10 to 60°C

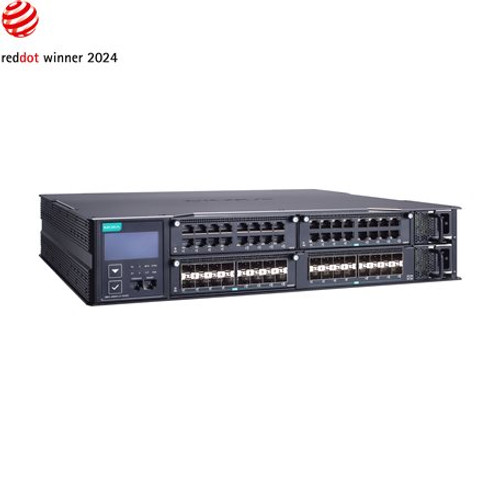

Image of MRX-Q4064-L3-16XGS
Free Ground Shipping on U.S. Orders over $99 $27,600.00 ON BACKORDER Estimated Availability: 06/27/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-mrx-q4064-series-datasheet-of-mrx-q4064-series-datasheet-v1.1.pdf
  • 16 10GbE Ethernet ports
  • Up to 48 1GbE or 2.5GbE ports or SFP slots
  • HAST (High-availability Static Trunk) technology supports backbone reliability
  • Onboard LCM display for at-a-glance status updates supports easy on-site maintenance and operation
  • Dual power modules and 6+2 fan redundancy design for non-stop network operations
  • Real-time system temperature monitoring to protect network and devices
View More
Overview Specifications Accessories

Introduction

The MRX-Q4064 Series is designed to meet the high-performance,high-availability requirements of industrial video, voice, and dataapplications resulting from the growing convergence of informationtechnology in industrial sites.

The modular design of the MRX-Q4064 Series supports 1610GbE ports built-in and up to 48 2.5GbE ports via modules, idealfor building large-scale industrial network applications. 10GbE portssignificantly increase the network switching bandwidth, allowing fordirect connections to 10GbE-enabled servers and moving data collectionand analysis closer to the application site. Additionally, supportfor multi-port aggregation allows for higher bandwidth backbone, whilealso leaving room for future network growth.

In addition to accommodating larger numbers of fielddevices, MRX-Q4064 Series reduces the delay of data transmission andenables the rapid transmission of large amounts of video, voice, anddata on high-performance networks. This series is equipped with aredundant multi-fan cooling system and redundant isolated power supplies.It supports industrial high-efficiency Turbo Ring technology, as wellas other network redundancy technologies such as ERPS (ITU-T G.8032)and RSTP/STP, which can enhance the reliability and availability ofbackbone networks in IT/OT convergence applications.

Additional Features and Benefits

  • Flexible bandwidth/port combinations for effective bandwidthmanagement and maximum reliability

  • Command line interface (CLI) for quick management

  • Out-of-band management (OOBM) port to ensure the availabilityof network management when in-band services are inaccessible

  • System temperature control and power consumption managementfor non-stop operations

  • Port mirroring (N:M) technology to support security monitoringand auditing

  • Optimized for large burst transmissions of large-scalevideo surveillance to prevent frame loss

  • IEEE1588v2 PTP (Precision Time Protocol) for network timesynchronization

  • Supports MXconfig and MXview One for industrial networkmanagement and visualization
