Moxa MXview One Series

Introduction

Moxa’s MXview One next-generation network managementsoftware is designed for monitoring and diagnosing networking devicesin industrial networks. MXview One provides an integrated managementplatform that can discover networking devices and SNMP/IP devicesinstalled on subnets. All selected network components can be managedvia a web browser from a local site or through remote access—anytimeand anywhere.

In addition, MXview One supports the optional MXview Wireless This feature requires the MXview Wireless add-on license (LIC-MXviewOne-ADD-WIRELESS-MR),which can be purchased separately. An active MXview One license isrequired in order to activate the add-on license. and MXviewPower This feature requires the MXview Power add-on license (LIC-MXviewOne-ADD-POWER-MR),which can be purchased separately. An active MXview One license isrequired in order to activate the add-on license. add-on modules.MXview Wireless provides additional advanced functions for wirelessapplications to monitor and troubleshoot your network, and help youminimize downtime. MXview Power provides additional advanced functionsfor power applications based on IEC 61850 to monitor and troubleshootsubstation networks in real-time.

Visualization

• Discovers up to 2,000 Moxa devices and SNMP/ICMP deviceswithin scan range

• Visualization of redundant link status and device rolesof network redundancy protocols

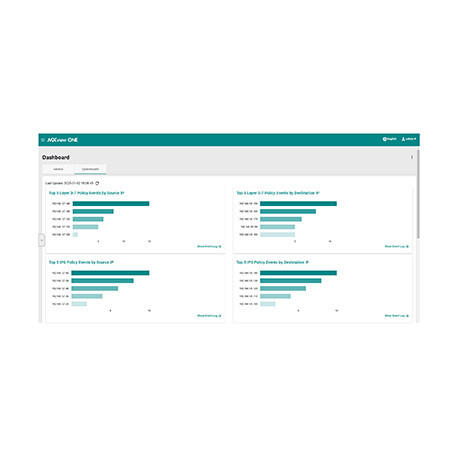

• Security view for the security status of network deviceswith industrial security standard

• A network management dashboard to view the network statusquickly

• Visualization of network traffic loading with color-codedlinks

• Visualization of managed PoE device power consumption

• SFP list for fiber check

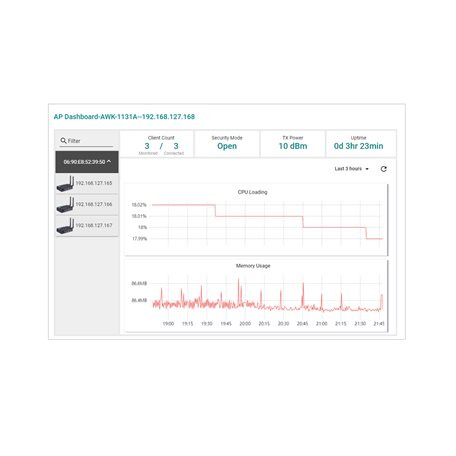

• Wireless device dashboard that shows dynamic AP-clientrelationships and performance indicator charts for wireless devices This feature requires the MXview Wireless add-on license (LIC-MXviewOne-ADD-WIRELESS-MR),which can be purchased separately. An active MXview One license isrequired in order to activate the add-on license.

• Roaming playback to review a client's roaming status This feature requires the MXview Wireless add-on license (LIC-MXviewOne-ADD-WIRELESS-MR),which can be purchased separately. An active MXview One license isrequired in order to activate the add-on license.

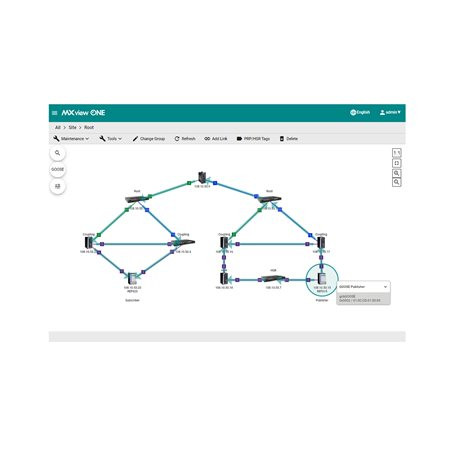

• PRP/HSR visualization for power applications compliantwith IEC-61850 This feature requires the MXview Power add-on license(LIC-MXviewOne-ADD-POWER-MR), which can be purchased separately. Anactive MXview One license is required in order to activate the add-onlicense.

• MMS protocol to identify related IED devices Thisfeature requires the MXview Power add-on license (LIC-MXviewOne-ADD-POWER-MR),which can be purchased separately. An active MXview One license isrequired in order to activate the add-on license.

Network Diagnostics and Event Notifications

• Detect problems in real-time with SNMP trap/inform, orperiodic polling

• Generate trend graphs to track bandwidth utilizationand error packet rate statistics, accurate to four decimal places

• Supports Syslog server for centralized message management

• Configurable event notification alarms sent through email

• Multiple options for events with self-defined thresholdand duration

• Real-time device availability monitoring

• Provides RESTful API and web widget for integrating MXviewOne into the existing system

Comprehensive Reports

• Generate an inventory report for each device on the network

• Compile comprehensive device properties report

Centralized Configuration and Firmware Management

• Managedevice firmware from a single platform

• Inone click, back up the configuration of multiple devices and the entireMXview One database, including topology, job scheduling, events, anddevice properties

• Schedulingfor periodic configuration backup

• Savehistory of configuration changes

• Comparisontool for checking differences between two configurations

Flexible Licenses

• Demand-based licenses to increase node limit for monitoring

• Optional MXview Power and MXview Wireless add-on licensesto unlock advanced functions
