NE-4110S-T

Moxa NE-4110S-T

NE-4100 Series
Device server module for RS-232 devices, supports 10/100BaseT(x) with RJ45 connector, -40 to 75°C operating temperature

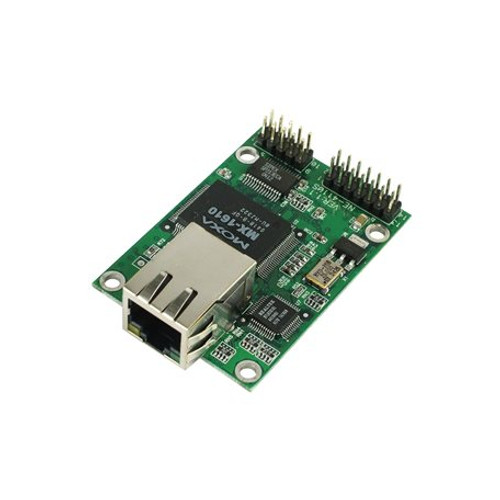

Image of NE-4110S-T
Free Ground Shipping on U.S. Orders over $99 $94.16 IN STOCK: 0 Units

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-ne-4100-series-datasheet-v1.3.pdf
  • 10/100 Mbps Ethernet interface
  • Supports baudrates up to 230.4 kbps
  • Choice of operation modes: Real COM, TCP Server, TCP Client, and UDP
  • Supports DHCP, BootP, Static IP, and ARP
  • SNMP and email alerts for event trapping and notifications
  • Half the size of a credit card—only 57 × 40 mm
  • Low power consumption at 1.5 W, with single +5 V input
View More
Overview Specifications Accessories

Introduction

Moxa’s NE-4100 embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices. Moxa’s embedded device servers can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. The NE-4100 embedded device servers support 10/100 Mbps Ethernet, and provide ready-to-use operation modes, including TCP Server, TCP Client, and UDP. In addition, a Real COM driver is included for backward compatibility with legacy software.

SNMP and Email Alerts for Event Trap and Notification

NE-4100 embedded device servers can be configured to send an SNMP trap or email under the following conditions:

  • Cold/warm start

  • Password authentication failure

  • Change in DSR/DCD line signal

  • Change in IP address

  • Change in password
