NPort 5450I-T

Moxa NPort 5450I-T

NPort 5400 Series
4-port RS-232/422/485 device server with DB9 connectors, 12-48VDC power input, 2KV islation protection, -40-75℃, (power adapter is not included)

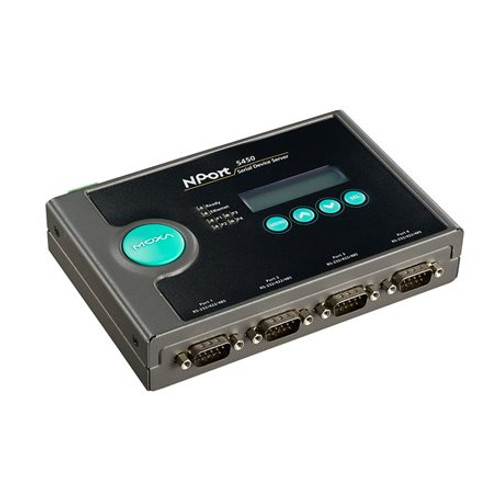

Image of NPort 5450I-T
Free Ground Shipping on U.S. Orders over $99 $863.76 ON BACKORDER Estimated Availability: 02/23/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ON ORDER: 1 Units
ADD TO CART

Features and Benefits

moxa-nport-5400-series-datasheet-v2.1.pdf
  • User-friendly LCD panel for easy installation
  • Adjustable termination and pull high/low resistors
  • Socket modes: TCP server, TCP client, UDP
  • Configure by Telnet, web browser, or Windows utility
  • SNMP MIB-II for network management
  • 2 kV isolation protection for NPort 5430I/5450I/5450I-T
  • -40 to 75°C operating temperature range (-T model)
View More
Overview Specifications Accessories

Introduction

NPort® 5400 device servers provide many useful features for serial-to-Ethernet applications, including an independent operation mode for each serial port, user-friendly LCD panel for easy installation, dual DC power inputs, and adjustable termination and pull high/low resistors.

Network Readiness for up to 4 Serial Devices

NPort® 5400 device servers can conveniently and transparently connect up to four serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. Data transmission between the serial and Ethernet interfaces is bidirectional. By using NPort® device servers, you not only protect your current hardware investment, but also allow for future network expansion. You can both centralize the management of your serial devices and distribute management hosts over the network.

Independent Operation Mode for Each Serial Port

NPort® 5400 device servers can be used to connect different devices for remote data polling or event handling over a TCP/IP network. Each serial port on the NPort® 5400 operates independently to provide maximum versatility. For example, port 1 can operate in Driver mode, port 2 in TCP Server mode, and ports 3 and 4 in TCP Client mode.

User-friendly LCD Panel for Easy Installation

An LCD panel is built intothe NPort® 5400’s top panel, with four buttons for data input, configuration,and operation mode selection. The LCD panel displays the server name,serial number, and IP address, and it can be used to enter or modifyparameters such as IP address, netmask, and gateway. (The LCD panelis not available on wide-temperature models.)

Dual DC Power Inputs

NPort® 5400 device servers support dual power sources by providing both a DC terminal block input and a DC power jack input. Providing two types of power inputs gives users greater flexibility for use with different applications.

Adjustable Termination and Pull High/Low Resistors

The NPort 5400 Series provides adjustable termination and pull high/low resistors for RS-485 applications. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals, and the pull high/low resistors may need adjusting to maintain the integrity of the electrical signal. Since no set of resistor values is universally compatible with all environments, the NPort® 5400 has four sets of DIP switches on the bottom panel to set the termination and pull high/low resistor values.
