NPort 6450

Moxa NPort 6450

NPort 6400/6600 Series
4-Port RS-232/422/485 to Ethernet Secure Serial Port Server

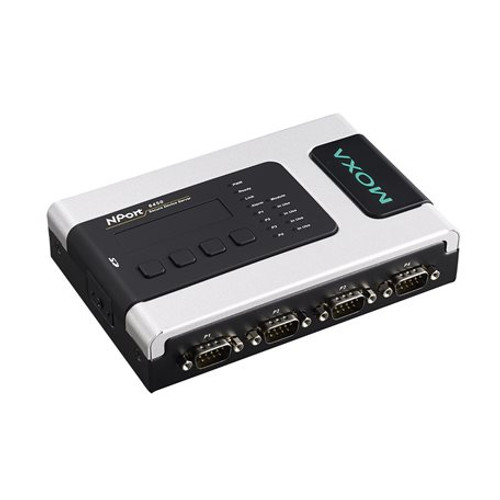

Image of NPort 6450
Free Ground Shipping on U.S. Orders over $99 $594.39 IN STOCK: 9 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-nport-6400-6600-series-datasheet-v1.6.pdf
  • LCD panel for easy IP address configuration (standard temp. models)
  • Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
  • Nonstandard baudrates supported with high precision
  • Port buffers for storing serial data when the Ethernet is offline
  • Supports IPv6
  • Ethernet redundancy (STP/RSTP/Turbo Ring) with network module
  • Generic serial commands supported in Command-by-Command mode
  • Security features based on IEC 62443
View More
Overview Specifications Accessories

Introduction

The NPort® 6000 is a terminal server that uses the SSL and SSH protocols to transmit encrypted serial data over Ethernet. Up to 32 serial devices of any type can be connected to the NPort® 6000, using the same IP address. The Ethernet port can be configured for a normal or secure TCP/IP connection. The NPort® 6000 secure device servers are the right choice for applications that use large numbers of serial devices packed into a small space. Security breaches are intolerable and the NPort® 6000 Series ensures data transmission integrity with support for DES, 3DES, and AES encryption algorithms. Serial devices of any type can be connected to the NPort® 6000, and each serial port on the NPort® 6000 can be configured independently for RS-232, RS-422, or RS-485 transmission.

No Data Loss If Ethernet Connection Fails

The NPort® 6000 is a reliable device server thatprovides users with secure serial-to-Ethernet data transmission anda customer-oriented hardware design. If the Ethernet connection fails,the NPort® 6000 will queue all serial data in its internal 64 KB portbuffer. When the Ethernet connection is re-established, the NPort®6000 will immediately release all data in the buffer in the orderthat it was received. Users can increase the port buffer size by installingan SD card.

LCD Panel Makes Configuration Easy

The NPort® 6600 has a built-in LCD panel for configuration. The panel displays the server name, serial number, and IP address, and any of the device server’s configuration parameters, such as IP address, netmask, and gateway address, can be updated easily and quickly.

Note: The LCD panel is only available with standard-temperature models.

Adjustable Resistor Values for RS-485 Communication

The NPort® 6600 provides adjustable termination, pull high, and pull low resistors for RS-485 communication. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals, and the pull high and pull low resistors may need adjusting to maintain the integrity of the electrical signal. Since no set of resistor values works for every environment, the NPort® 6600 allows manual adjustment of the resistor values for each serial port using built-in DIP switches.
