NPort IA5250A

Moxa NPort IA5250A

NPort IA5000A Series
2-Port RS-232/422/485 Industrial Automation Device Server with serial/LAN/power surge protection, two 10/100BaseT(X) ports with single IP, 0 to 60°C operating temperature

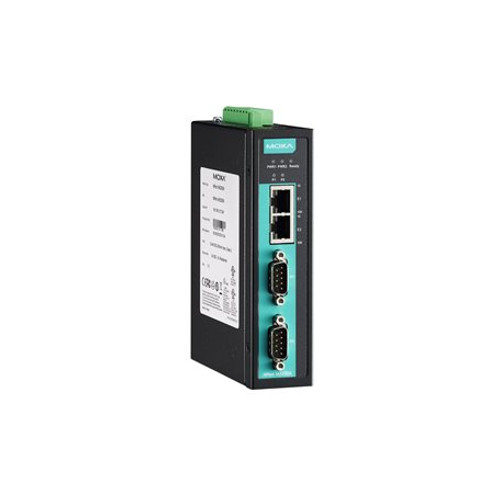

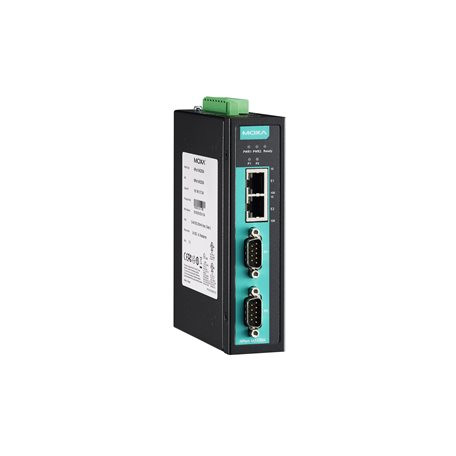

Image of NPort IA5250A
Free Ground Shipping on U.S. Orders over $99 $379.85 IN STOCK: 3 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-nport-ia5000a-series-datasheet-v1.5.pdf
  • 2 Ethernet ports with the same IP or dual IP addresses for network redundancy
  • C1D2, ATEX, and IECEx certified for harsh industrial environments
  • Cascading Ethernet ports for easy wiring
  • Enhanced surge protection for serial, LAN, and power
  • Screw-type terminal blocks for secure power/serial connections
  • Redundant DC power inputs
  • Warnings and alerts by relay output and email
  • 2 kV isolation for serial signals (isolation models)
  • -40 to 75°C operating temperature range (-T models)
View More
Overview Specifications Accessories

Introduction

The NPort IA5000A device servers are designed for connecting industrial automation serial devices, such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. The device servers are solidly built, come in a metal housing and with screw connectors, and provide full surge protection. The NPort IA5000A device servers are extremely user-friendly, making simple and reliable serial-to-Ethernet solutions possible.

Cascading Ethernet Ports Make Wiring Easy

The NPort IA5000A device servers each have two Ethernet ports that can be used as Ethernet switch ports. One port connects directly to the network or server, and the other port can be connected to either another NPort IA device server or another Ethernet device. The dual Ethernet ports help reduce wiring costs by eliminating the need to connect each device to a separate Ethernet switch.

Redundant Power Inputs

The NPort IA5000A Series of device servers have two power inputs that can be connected simultaneously to live DC power sources. If one power source fails, the other source takes over automatically. Redundant power inputs help ensure uninterrupted operation of your device server.

Relay Output Warning and Email Alerts

The built-in relay output can be used to alert administrators when the network is down, when power failure occurs, or when there is a change in the DCD or DSR serial signals. An email warning can also be issued when an abnormality is detected. These functions are valuable tools that enable maintenance engineers to react promptly to emergency situations.

Surge Protection for Serial, Ethernet, and Power

Moxa’s leading-edge surge immunity solution, which is applied to the NPort® IA5000A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This advanced surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and resist electrical interference, such as in oil, gas, and power automation applications.

Industrial-grade Certification

To ensure safe and reliable operation in industrialenvironments, the NPort® IA5000A device servers have obtained variousindustrial certifications, including an IP30 rating for mechanicalprotection and UL 508 safety certification for industrial controlequipment. In addition, these device servers are UL/cUL listed (forClass 1, Division 2, Groups A,B,C,D), ATEX Class 1 Zone 2, and IECExcompliant for use in hazardous locations.
