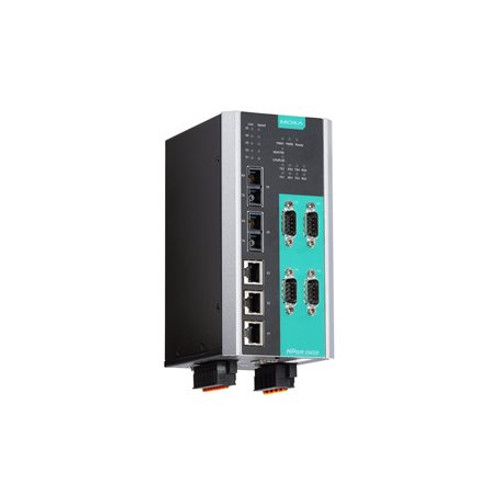

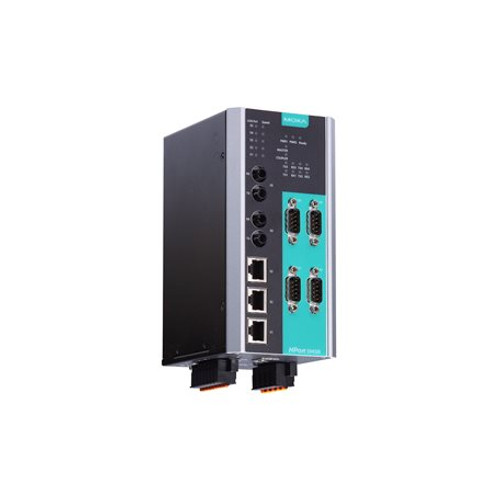

The NPort S9450I Series 4-port RS-232/422/485device servers, which come with a built-in full-function managed Ethernetswitch, are designed specifically for the harsh environmental conditionsfound in electrical substations. With both fiber and wired Ethernetports supported, the combination of device server and Ethernet switchgives users the ability to easily install, manage, and maintain theNPort S9450I itself, as well as attached serial devices.
The NPort S9450I Series supports a high level of surge protection to prevent damage from the types of power surges and EMI one finds in electrical substations and industrial automation applications. Combined with a -40 to 85°C operating temperature range and galvanized steel housing, the NPort S9450I is suitable for a wide range of industrial environments.
Another plus is the NPort S9450I’s dual power supplies, which provide both redundancy, as well as a wide range of voltage inputs. The WV models accept a power 24/48 VDC power input (ranging from 18 to 72 VDC), and the HV models accept a power input of 88 to 300 VDC and 85 to 264 VAC.
The current trend in power SCADA applicationsis to control and monitor both IT devices (switches, routers, etc.)and IEDs (sensors, actuators, etc.) with the MMS protocol. Contrastthis with the more traditional management approach of using SNMP forIT devices and MMS for IEDs. In fact, SIs may even need to managea variety of legacy devices that use proprietary communications protocols.
The NPort S9450I deviceservers are the world’s first device servers to integrate MMS intoan IT-type device designed specifically for power SCADA applications.The NPort S9450I even supports using MMS to monitor serial communicationsbetween the S9450I and legacy devices.
The NPort S9450I Series provides maximum flexibility for integrating industrial Modbus/DNP3 networks of all types and sizes. The NPort S9450I is designed to integrate Modbus TCP, ASCII, and RTU devices in almost any master/slave combination, including simultaneous serial and Ethernet masters.
The NPort S9450I device servers also support protocol conversion between DNP3 serial and DNP3 IP. All models are ruggedly constructed and are DIN-rail mountable.
The NPort S9450I Series has security features based on IEC 62443/NERC CIP to provide a high level of cybersecurity. Protecting mission-critical networks from cyberattacks is a high priority for industrial automation applications, which can suffer large losses due to extended network downtime.
Device-level communication networks for industrial automation are very critical since they are used to control and monitor device processes. The reliability of these communications depends on ring redundancy at the device level, which is designed to provide fast network fault detection and reconfiguration to support the most demanding control applications. The NPort S9450I Series integrates a full-function NPort device server with an industrial switch to carry serial and Ethernet devices at the same time.
In addition, the NPort S9450I can also achieve ring redundancy with standard STP/RSTP and Moxa’s proprietary Turbo Ring or Turbo Chain 2 redundancy protocols. This all-in-one design can be used to optimize and simplify your device network and enhance reliability.
