OnCell 3120-LTE-1-US-T

Moxa OnCell 3120-LTE-1-US-T

OnCell 3120-LTE-1 Series
Industrial LTE Cat 1 cellular gateway, B2/B4/B5/B12/B13/14/B66/B71, 1 x RS232/422/485 serial port, 2 x 10/100BaseT(X) RJ45 ports, -30 to 70°C operating temperature

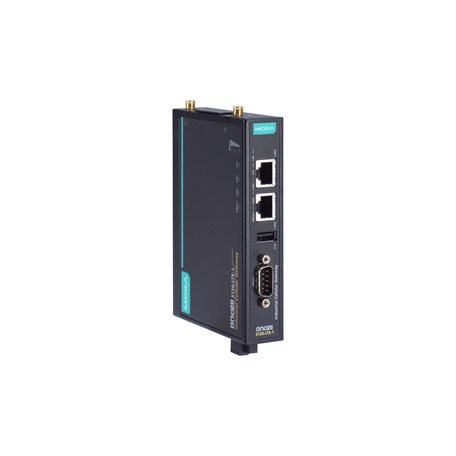

Image of OnCell 3120-LTE-1-US-T
Free Ground Shipping on U.S. Orders over $99 $671.25 ON BACKORDER Estimated Availability: 02/23/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-oncell-3120-lte-1-series-datasheet-v1.7.pdf
  • Low power consumption (40 mW in standby)
  • GuaranLink for reliable cellular connectivity
  • Dual cellular operator backup with dual-SIM
  • Cellular WAN and Ethernet WAN backup mechanism for a complete path redundancy
  • Rugged hardware design well suited for hazardous locations (ATEX Zone 2/IECEx)
  • VPN secure connection capability with IPsec, GRE, and OpenVPN protocols
View More
Overview Specifications Accessories

Introduction

The OnCell 3120-LTE-1 Series is a set of reliable, secure,low power consumption LTE gateways with state-of-the-art global LTECat 1 coverage. These LTE cellular gateways provide reliable connectionsfrom remote serial and Ethernet devices to a cellular network so thatyour applications can be easily implemented for IIoT remote-accessscenarios. With its efficient power saving features, the OnCell 3120-LTE-1Series lowers power consumption to less than 40 mW when in standbymode which can be managed using schedules. To enhance industrial reliability,the OnCell 3120-LTE-1 features GuaranLink to ensure robust cellularconnectivity.

Remote Access Gateway with VPN and Network Security

  • Secureand reliable VPN support with NAT/OpenVPN/GRE/IPsec functionality

  • Cybersecurityfeatures based on IEC 62443-4-2

Industrial-grade Reliability

  • Ruggedhardware design well suited for hazardous locations (ATEX, C1D2, IECEx)

  • GuaranLinkfor reliable cellular connectivity

  • WANbackup between cellular and Ethernet

  • -30to 70°C wide operating temperature

  • Lowpower consumption: Less than 40 mW in standby mode
