POS-104UL Series

Moxa POS-104UL Series

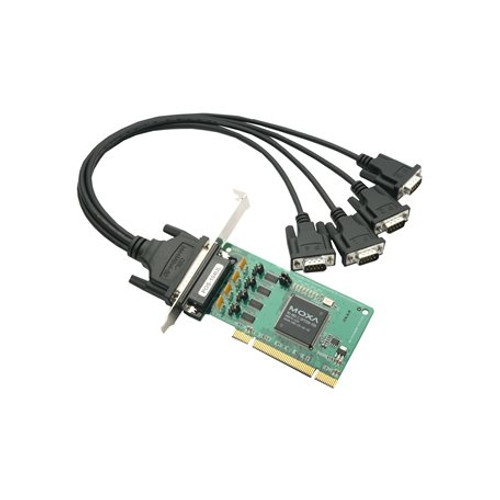

4-port RS-232 Universal PCI boards with power over serial
POS-104UL Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-pos-104ul-series-datasheet-v1.1.pdf
  • Over 800 kbps data throughput for top performance
  • Power options for each port: 5 V (output), 12 V (output), and RI (input)
  • Serial port power from bus or power supply
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible with 3.3/5 V PCI and PCI-X
  • Low-profile board, suitable for compact-sized PCs
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Wide-temperature model available for -40 to 85°C environments
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

The POS-104UL is a smart, 4-port Universal PCI serial board designed for POS and ATM applications and for use by industrial automation system manufacturers and system integrators. The POS-104UL is compatible with all major operating systems. In addition, each of the 4 RS-232 serial ports supports data rates up to 921.6 kbps and provides full modem control signals to ensure compatibility with a wide range of serial peripherals. The POS-104UL supplies 5 or 12 volts of power to each serial port, and it works with both 3.3 V and 5 V PCI buses, making it suitable for installation in most PC servers.
