PT-508-SS-LC-48

Moxa PT-508-SS-LC-48

PT-508 Series
IEC 61850-3 managed DIN-Rail Ethernet switch, with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with LC connectors, 1 isolated power supply (48 VDC), -40 to 85°C operating temperature

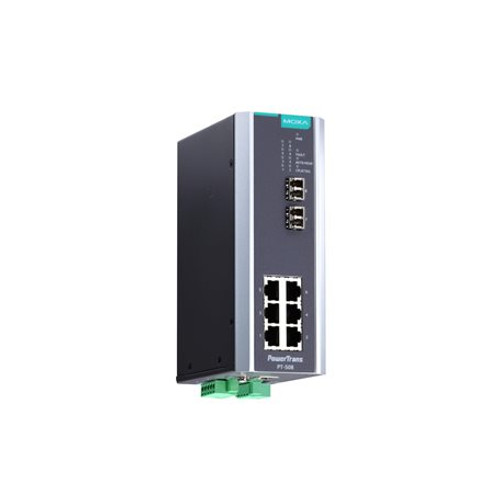

Image of PT-508-SS-LC-48
Free Ground Shipping on U.S. Orders over $99 $1,917.54 ON BACKORDER Estimated Availability: 02/21/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-pt-508-series-datasheet-v1.2.pdf
  • IEC 61850-3 and IEEE 1613 compliant
  • Turbo Ring and Turbo Chain (recovery time
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Isolated universal 24 VDC or 48 VDC redundant power inputs
  • Wide 110/220 VDC/VAC power supply range
  • Modbus TCP, LLDP, SNMP Inform, QoS, IGMP snooping, VLAN, IEEE 802.1X, HTTPS, SNMPv3, and SSH supported
  • -40 to 85°C operating temperature range
View More
Overview Specifications Accessories

Introduction

The PowerTrans PT-508 Series is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-508’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC or 48 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall-mounting design of the PT-508 switches simplify network planning, and allows greater flexibility by letting you install up to 8 Fast Ethernet ports for power distribution applications.

Additional Features and Benefits

  • Command line interface (CLI) for quicklyconfiguring major managed functions

  • VLAN Unaware: Supports priority-taggedframes to be received by specific IEDs

  • EtherNet/IP and Modbus TCP industrialEthernet protocols supported

  • Configurable by web browser, Telnet/Serialconsole, CLI, Windows utility, and ABC-01 automatic backup configurator

  • DHCP Option 82 for IP address assignmentwith different policies

  • IGMP snooping and GMRP for filtering multicasttraffic from industrial Ethernet protocols

  • IEEE 802.3ad, LACP for optimum bandwidthutilization

  • Bandwidth management to prevent unpredictablenetwork status

  • Multi-port mirroring for online debugging

  • Automatic warning by exception throughemail and relay output

  • RMON for proactive and efficient networkmonitoring

  • Automatic recovery of connected device’sIP addresses

  • Line-swap fast recovery

Cybersecurity Features

  • User passwords with multiple levels of security protect against unauthorized configuration

  • SSH/HTTPS is used to encrypt passwords and data

  • Lock switch ports with 802.1X port-based network access control so that only authorized clients can access the port

  • RADIUS/TACACS+ allows you to manage passwords from a central location

  • 802.1Q VLAN allows you to logically partition traffic transmitted between selected switch ports

  • Secure switch ports so that only specific devices and/or MAC addresses can access the ports

  • Disable one or more ports to block network traffic

  • SNMPv3 provides encrypted authentication and access security
