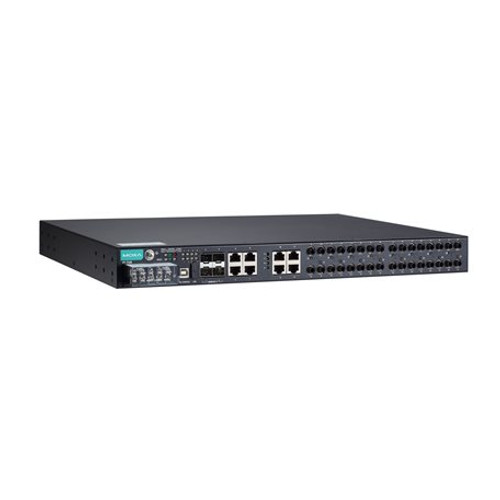

The PT-7528 Series is designed for power substation automation applications that operate in extremely harsh environments. The PT-7528 Series supports Moxa’s Noise Guard technology, is compliant with IEC 61850-3, and its EMC immunity exceeds IEEE 1613 Class 2 standards to ensure zero packet loss while transmitting at wire speed. The PT-7528 Series also features critical packet prioritization (GOOSE and SMVs), a built-in MMS server, and a configuration wizard designed specifically for substation automation.
With Gigabit Ethernet, redundant ring, and 110/220 VDC/VAC isolated redundant power supplies, the PT-7528 Series further increases the reliability of your communications and saves cabling/wiring costs. The wide range of PT-7528 models available support multiple types of port configuration, with up to 28 copper or 24 fiber ports, and up to 4 Gigabit ports. Taken together, these features allow greater flexibility, making the PT-7528 Series suitable for a variety of industrial applications.
Switch data modeling based on the IEC 61850-90-4 standard
Fiber Check™ provides monitoring and diagnosis functions on MST/MSC/SSC/SFP fiber ports
VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
EtherNet/IP and Modbus TCP industrial Ethernet protocols supported
Configurable by web browser, Telnet/Serial console, CLI, Windows utility, and ABC-02 automatic backup configurator
Turbo Ring and Turbo Chain (recovery time Gigabit Ethernet recovery time RSTP/STP, and MSTP for network redundancy
DHCP Option 82 for IP address assignment with different policies
IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
IEEE 802.3ad, LACP for optimum bandwidth utilization
Bandwidth management to prevent unpredictable network status
Multiport mirroring for online debugging
Automatic warning by exception through email and relay output
RMON for proactive and efficient network monitoring
Automatic recovery of connected device’s IP addresses
Line-swap fast recovery
Noise Guard™ provides a high level of EMC immunity for critical applications, exceeding IEEE 1613 Class 2
User passwords with multiple levels of security protect against unauthorized configuration
SSH/HTTPS is used to encrypt passwords and data
Lock switch ports with 802.1X port-based network access control so that only authorized clients can access the port
RADIUS/TACACS+ allows you to manage passwords from a central location
802.1Q VLAN allows you to logically partition traffic transmitted between selected switch ports
Secure switch ports so that only specific devices and/or MAC addresses can access the ports
Disable one or more ports to block network traffic
SNMPv3 provides encrypted authentication and access security
