PT-G503-PHR-PTP-HV

Moxa PT-G503-PHR-PTP-HV

PT-G503 Series
IEC 61850-3 and IEC 62439-3 full Gigabit managed redundancy box, with 3 10/100/1000BaseT(X) ports or 100/1000Base SFP ports, 1 10/100/1000BaseT(X) Ethernet console port, 1 isolated dual power input (88 to 300 VDC or 85 to 264 VAC), -40 to 85°C opera

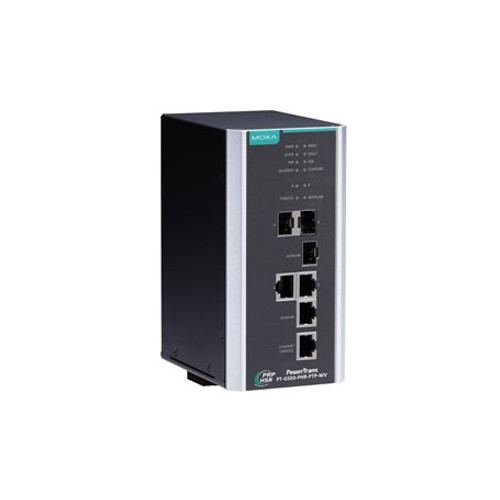

Image of PT-G503-PHR-PTP-HV
Free Ground Shipping on U.S. Orders over $99 $2,712.28 IN STOCK: 2 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-pt-g503-series-datasheet-v1.2.pdf
  • IEC 61850-3, IEEE 1613 (power substations) compliant
  • IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
  • PRP/HSR Coupling and QuadBox functions supported
  • Ethernet console reserved for local access
  • Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
  • Hardware-based IEEE 1588v2 PTP supported
  • Design ready for NERC CIP compliant system development
  • Power inputs with universal 24 VDC, 48 VDC, or 110/220 VDC/VAC power supply range
  • -40 to 85°C operating temperature range
View More
Overview Specifications Accessories

Introduction

The PT-G503-PHR-PTP Series redundancy boxes (RedBoxes)are compliant with the latest standardized redundancy protocols forindustrial automation networks, IEC 62439-3 Clause 4 (Parallel RedundancyProtocol, PRP) and IEC 62439-3 Clause 5 (High-availability SeamlessRedundancy, HSR). PRP/HSR ensures the highest system availabilityand data integrity for mission-critical applications in electricalsubstation and/or process automation systems that require zero recoverytime redundancy. The redundant protocols Coupling and QuadBox arealso supported. With Coupling and QuadBox, HSR rings can be connectedto make the redundant network more versatile. The PT-G503-PHR-PTPSeries comes with three 10/100/1000BaseT(X) and 100/1000BaseSFP slotcombo ports.

Oneslot (INTERLINK port) is for an internal link for connecting witha SAN (Singly Attached Node). The other two ports (LAN A and LAN Bports) are for PRP/HSR redundant protocol communications. With thisfull Gigabit Ethernet port design, the PT-G503-PHR-PTP Series provideshigh performance for PRP/HSR systems.

The PT-G503-PHR-PTP Series alsoprovides IEEE 1588v2 PTP in end-to-end one-step transparent clockmode for time-critical applications and power inputs with 24/48 VDCor 110/220 VDC/VAC ranges to increase the reliability of the powersupply.

Additional Features and Benefits

  • PRP (Parallel Redundancy Protocol): Transmit or receive two independent active paths to/from different LANs simultaneously on a zero recovery time network

  • HSR (High-availability Seamless Redundancy): Every frame is duplicated and then transmitted in both directions of the HSR ring to deliver zero switchover time

  • PRP/HSR coupling: Supports coupling from an HSR ring node to redundant PRP LANs (Up to 7 PRP LANs)

  • QuadBox function: Supports peer coupling of rings via interconnecting two INTERLINK ports on two separate RedBoxes

  • Fiber Check™ provides monitoring and diagnosis functionality on SFP fiber ports

  • Hardware-based IEEE 1588v2 PTP (Precision Time Protocol) end-to-end one-step transparent clock for precise time synchronization of networks

  • Automatic warning by exception through email and relay output

  • Configurable via web browser, CLI, Windows utility, and ABC-02 automatic backup configurator
