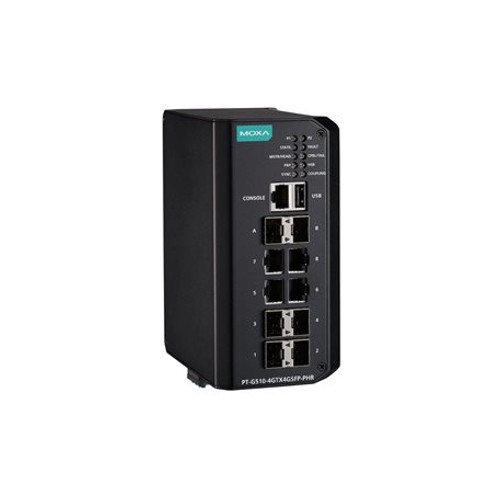

Moxa PT-G510-4GTX4GSFP-PHR-HV-CT
PT-G510 SeriesFeatures and Benefits
- IEC 61850-3 Edition 2 Class 2 compliant
- IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
- IEEE 1588 hardware time stamp supported
- Supports IEEE C37.238 and IEC 61850-9-3 power profiles
- GOOSE Check for easy troubleshooting
- Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
- -40 to 75°C operating temperature range
Introduction
The PT-G510 Series is designed to deliver the highestlevel of system availability and data integrity for mission-criticalapplications in digital substations that demand zero-recovery-timeredundancy. The PT-G510 Series supports PRP/HSR to achieve seamlessredundancy for substations and process automation systems. Hardware-basedIEEE 1588v2 PTP is also supported for time-critical applications.Featuring a highly durable design, the PT-G510 Series is certifiedfor IEC 61850-3 Edition 2 Class 2 to fulfill demanding requirementsin substation applications.

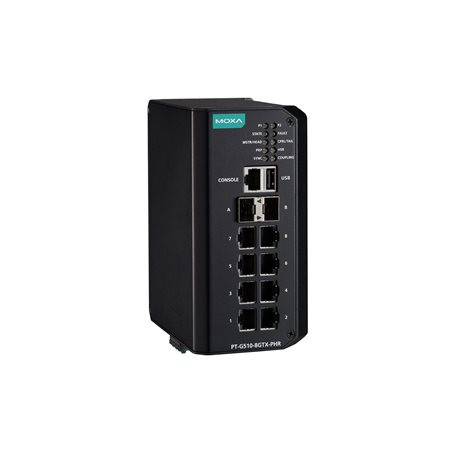

The PT-G510 Series comes with eight 100/1000BaseT(X) Ethernet portsor 100/1000BaseSFP slots with two dedicated 100/1000BaseSFP PRP/HSRports combined with support for a complete redundancy protocol suiteincluding PRP, HSR, MRP, STP, MSTP, and RSTP for maximum network reliability.The PT-G510 Series further supports GOOSE Check to efficiently monitorGOOSE packets and features a built-in MMS server based on IEC 61850-90-4switch data modeling for power SCADA systems.
