PT-G510-8GSFP-PHR-WV-CT

Moxa PT-G510-8GSFP-PHR-WV-CT

PT-G510 Series
PT-G510-8GSFP-PHR-WV-CT ; IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch, 10 100/1000Base SFP ports,dual power inputs (24-48 VDC),-40 to 75°C ,Conformal Coating

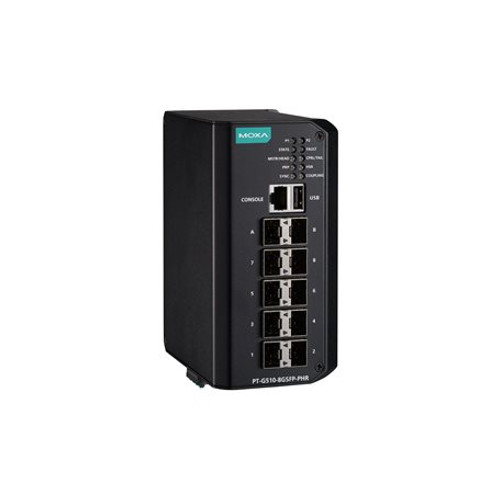

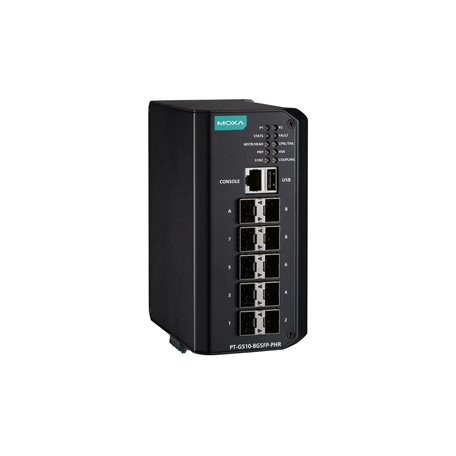

Image of PT-G510-8GSFP-PHR-WV-CT
Free Ground Shipping on U.S. Orders over $99 $3,500.00 IN STOCK: 2 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-pt-g510-series-datasheet-v1.2.pdf
  • IEC 61850-3 Edition 2 Class 2 compliant
  • IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
  • IEEE 1588 hardware time stamp supported
  • Supports IEEE C37.238 and IEC 61850-9-3 power profiles
  • GOOSE Check for easy troubleshooting
  • Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
  • -40 to 75°C operating temperature range
View More
Overview Specifications Accessories

Introduction

The PT-G510 Series is designed to deliver the highestlevel of system availability and data integrity for mission-criticalapplications in digital substations that demand zero-recovery-timeredundancy. The PT-G510 Series supports PRP/HSR to achieve seamlessredundancy for substations and process automation systems. Hardware-basedIEEE 1588v2 PTP is also supported for time-critical applications.Featuring a highly durable design, the PT-G510 Series is certifiedfor IEC 61850-3 Edition 2 Class 2 to fulfill demanding requirementsin substation applications.

The PT-G510 Series comes with eight 100/1000BaseT(X) Ethernet portsor 100/1000BaseSFP slots with two dedicated 100/1000BaseSFP PRP/HSRports combined with support for a complete redundancy protocol suiteincluding PRP, HSR, MRP, STP, MSTP, and RSTP for maximum network reliability.The PT-G510 Series further supports GOOSE Check to efficiently monitorGOOSE packets and features a built-in MMS server based on IEC 61850-90-4switch data modeling for power SCADA systems.
