PT-G7728

Moxa PT-G7728

PT-G7728 Series
Layer 2 Switch with 2*FE/GE SFP, 2*FE/GE T(X), 6 Ethernet module slots and 2 power module slots

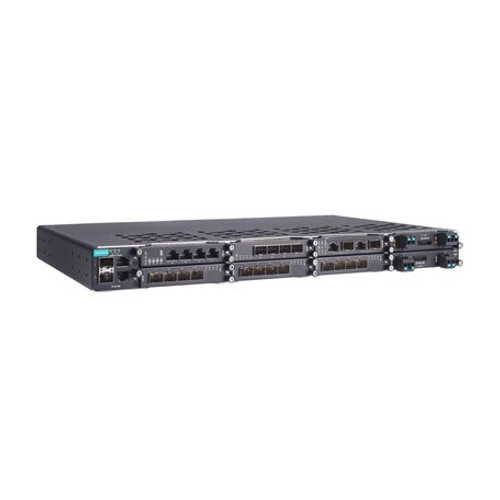

Image of PT-G7728
Free Ground Shipping on U.S. Orders over $99 $3,438.14 ON BACKORDER Estimated Availability: 04/20/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-pt-g7728-series-datasheet-v2.1.pdf
  • IEC 61850-3 Edition 2 Class 2 compliant for EMC
  • Wide operating temperature range: -40 to 85°C (-40 to 185°F)
  • Hot-swappable interface and power modules for continuous operation
  • IEEE 1588 hardware time stamp supported
  • Supports IEEE C37.238 and IEC 61850-9-4 power profiles
  • IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
  • GOOSE Check for easy troubleshooting
  • Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
View More
Overview Specifications Accessories

Introduction

The PT-G7728 Series modular switches provide up to 28Gigabit ports, including 4 fixed ports, 6 interface module slots,and 2 power module slots to ensure sufficient flexibility for a varietyof applications. The PT-G7728 Series is designed to meet evolvingnetwork requirements, featuring a hot-swappable module design thatenables you to change, add, or remove modules without having to shutdown the switch.

Multiple types of interface modules (RJ45, SFP, PoE, PRP/HSR) andpower units (24/48 VDC, 110/220 VAC/VDC) provide even greater flexibilityto suit different operating conditions. The PT-G7728 Series complieswith the IEC 61850-3 Edition 2 Class 2 standard to ensure reliabledata transmissions when the device is subjected to high levels ofEMI, shock, or vibration.
