PTC-101-S-SC-LV

Moxa PTC-101-S-SC-LV

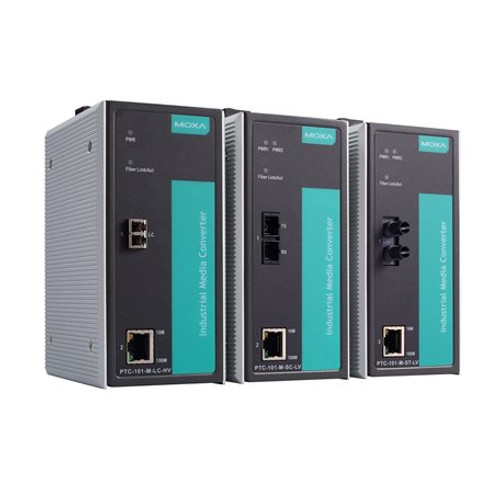

PTC-101 Series
Industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with SC connector, dual redundant power inputs (20-70 VDC), -40 to 85°C operating temperature
PTC-101-S-SC-LV
Free Ground Shipping on U.S. Orders over $99 $1,056.29 ON BACKORDER Estimated Availability: 02/26/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-ptc-101-series-datasheet-v1.7.pdf
  • 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
  • Link Fault Pass-Through (LFPT)
  • Power failure alarm by relay output (LV model only)
  • -40 to 85°C operating temperature range
  • Redundant dual DC power inputs (LV model only)
  • Integrated high-reliability power supply eliminates the need for external power transformer
View More
Overview Specifications Accessories

Introduction

The PTC-101 Ethernet-to-fiber media converters convertfrom 10/100BaseT(X) to 100BaseFX. Models are available with eitherSC, ST, or LC connectors. The PTC-101 converters eliminate the needfor additional wiring, and support IEEE 802.3 and IEEE 802.3u/x protocolswith 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing to providea total solution for your industrial Ethernet networks. The PTC-101is compliant with mandatory sections of IEC 61850-3, covering operatingtemperature, power input voltage, surge, ESD, and vibration, as wellas conformal coating and power insulation, making the media converterssuitable for a variety of industrial applications.
