RKS-G4028-4GS-LV-T

Moxa RKS-G4028-4GS-LV-T

RKS-G4028 Series

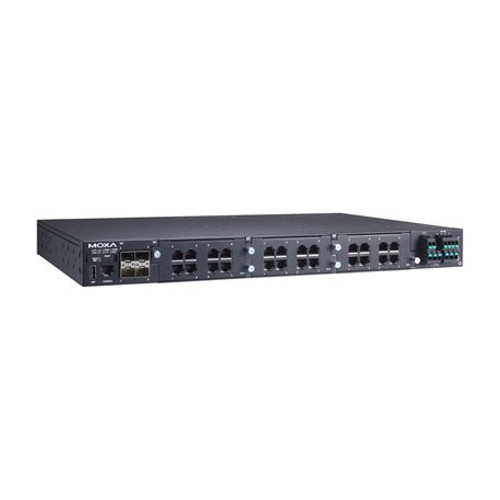

RKS-G4028-4GS-LV-T ; Modular managed Ethernet switch with 4 100/1000BaseSFP ports, 3 slots for Ethernet modules, 1 isolated power supply (24/48 VDC), -40 to 75°C operating temperature
Image of RKS-G4028-4GS-LV-T
Free Ground Shipping on U.S. Orders over $99 $3,663.00 ON BACKORDER Estimated Availability: 02/26/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-rks-g4028-series-datasheet-v1.6.pdf
  • Meets a wide range of demands from Fast Ethernet to full Gigabit industrial networks (up to 28 Gigabit ports)
  • Modular interfaces for flexible connector type combinations
  • Support for IEEE 802.3bt PoE for up to 90 W output per port
  • High EMC immunity compliant with IEC 61850-3 and IEEE 1613
  • Hardware-based IEEE 1588 PTP for high-precision time synchronization
  • Turbo Ring and Turbo Chain (recovery time If the port link speed is 1 Gigabit or higher, the recovery time is , and STP/RSTP/MSTP for network redundancy
  • -40 to 75°C operating temperature range
  • Supports MXstudio for easy, visualized industrial network management
  • Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
View More
Overview Specifications Accessories

Introduction

The RKS-G4028 Series is designed to meet the rigorousdemands of mission-critical applications for industry and business,such as power substation automation systems (IEC 61850-3, IEEE 1613),railway applications (EN 50121-4), and factory automation systems.The RKS-G4028 Series’ Gigabit and Fast Ethernet backbone, redundantring, and 24 VDC, 48 VDC, or 110/220 VDC/VAC dual isolated redundantpower supplies increase the reliability of your communications andsave on wiring costs.

The modular design of the RKS-G4028 Series also makes network planningeasy, and allows greater flexibility by letting you install up to28 Gigabit ports with various connector types.

Additional Features and Benefits

  • Layer 3 switching functionality to move data and informationacross networks (L3 models only)

  • IEEE 1588v2 PTP (Precision Time Protocol) for networktime synchronization

  • Command line interface (CLI) for quickly configuring majormanaged functions

  • IGMP snooping and GMRP for filtering multicast traffic

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease networkplanning

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • IEEE 802.3ad, LACP for optimum bandwidth utilization

  • Line-swap fast recovery

  • TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhancenetwork security

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management prevents unpredictable network statuswith “Lock port” to restrict access to authorized MAC addresses

  • Port mirroring for online debugging

  • Automatic warning by exception through email and relayoutput

  • Automatic recovery of connected device’s IP addresses

  • Configurable by web browser, Telnet/serial console, CLI,Windows utility, and ABC-02-USB automatic backup configurator
