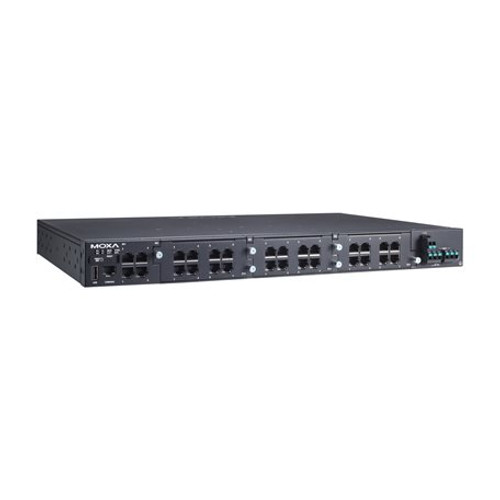

Moxa RKS-G4028-4GT-HV-T
RKS-G4028 SeriesPlease contact us via sales@neteon.net or 888-908-3330 for other product options.
Features and Benefits
- Meets a wide range of demands from Fast Ethernet to full Gigabit industrial networks (up to 28 Gigabit ports)
- Modular interfaces for flexible connector type combinations
- Support for IEEE 802.3bt PoE for up to 90 W output per port
- High EMC immunity compliant with IEC 61850-3 and IEEE 1613
- Hardware-based IEEE 1588 PTP for high-precision time synchronization
- Turbo Ring and Turbo Chain (recovery time If the port link speed is 1 Gigabit or higher, the recovery time is , and STP/RSTP/MSTP for network redundancy
- -40 to 75°C operating temperature range
- Supports MXstudio for easy, visualized industrial network management
- Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
Introduction
The RKS-G4028 Series is designed to meet the rigorousdemands of mission-critical applications for industry and business,such as power substation automation systems (IEC 61850-3, IEEE 1613),railway applications (EN 50121-4), and factory automation systems.The RKS-G4028 Series’ Gigabit and Fast Ethernet backbone, redundantring, and 24 VDC, 48 VDC, or 110/220 VDC/VAC dual isolated redundantpower supplies increase the reliability of your communications andsave on wiring costs.
The modular design of the RKS-G4028 Series also makes network planningeasy, and allows greater flexibility by letting you install up to28 Gigabit ports with various connector types.
Additional Features and Benefits
-
Layer 3 switching functionality to move data and informationacross networks (L3 models only)
-
IEEE 1588v2 PTP (Precision Time Protocol) for networktime synchronization
-
Command line interface (CLI) for quickly configuring majormanaged functions
-
IGMP snooping and GMRP for filtering multicast traffic
-
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease networkplanning
-
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
-
IEEE 802.3ad, LACP for optimum bandwidth utilization
-
Line-swap fast recovery
-
TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhancenetwork security
-
SNMPv1/v2c/v3 for different levels of network management
-
RMON for proactive and efficient network monitoring
-
Bandwidth management prevents unpredictable network statuswith “Lock port” to restrict access to authorized MAC addresses
-
Port mirroring for online debugging
-
Automatic warning by exception through email and relayoutput
-
Automatic recovery of connected device’s IP addresses
-
Configurable by web browser, Telnet/serial console, CLI,Windows utility, and ABC-02-USB automatic backup configurator
