SDS-G3016-2GSFP-T

SDS-G3016-2GSFP-T

SDS-G3016 Series
SDS-G3016-2GSFP-T ; Compact industrial full Gigabit smart Ethernet switch with 16G ports, -40 to 75°C

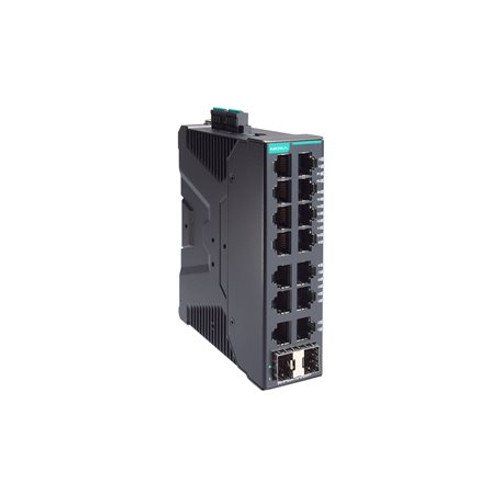

Image of SDS-G3016-2GSFP-T
Free Ground Shipping on U.S. Orders over $99 $1,064.00 ON BACKORDER Estimated Availability: 02/27/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-sds-g3016-series-datasheet-v1.1.pdf
  • Compact and flexible housing design to fit into confined spaces
  • Web-based GUI for easy device configuration and management
  • Multi-language web GUI: English, Traditional Chinese, Simplified Chinese, Japanese, German, and French
  • Supports RSTP/STP, and MRP for network redundancy to ensure high network availability
  • EtherNet/IP, PROFINET, and Modbus TCP industrial protocols supported for easy integration and monitoring in automation HMI/SCADA systems
  • Security features based on IEC 62443
  • Rotary DIP switch can perform profile-based settings without using a web browser
  • Supports MXstudio for easy, visualized industrial network management
View More
Overview Specifications Accessories

Introduction

The SDS-G3016 smart Ethernet switch is the ideal productfor IA engineers and automation machine builders to make their networkscompatible with the vision of Industry 4.0. By breathing life intomachines and control cabinets, the smart switch simplifies daily taskswith its easy configuration and easy installation. In addition, itis monitorable and is easy to maintain throughout the entire productlife cycle.

Themost frequently used automation protocols—including EtherNet/IP, PROFINET,and Modbus TCP—are embedded in the SDS-G3016 switch to provide enhancedoperational performance and flexibility by making it controllableand visible from automation HMIs. It also supports a range of usefulmanagement functions, including IEEE 802.1Q VLAN, port mirroring,SNMP, warning by relay, and a multi-language Web GUI.

Additional Features and Benefits

  • IP port binding to ensure critical devices can be replacedquickly without reassigning the IP Address

  • IEEE 802.1Q VLAN to ease network planning

  • Supports the ABC-02-USB (automatic Backup Configurator)for quick system configuration backup/restore and firmware upgrade

  • Automatic warning by exception through relay output

  • Unused port lock, SNMPv3, and HTTPS to enhance networksecurity

  • Port mirroring for online debugging and monitoring

  • Local log and the ability to export inventory files easeinventory management
