SPL-24

MOXA SPL-24

SPL-24 Series
Industrial IEEE802.3af PoE splitter, Maximum output of 12.95W at 24 VDC, 0 to 60°C

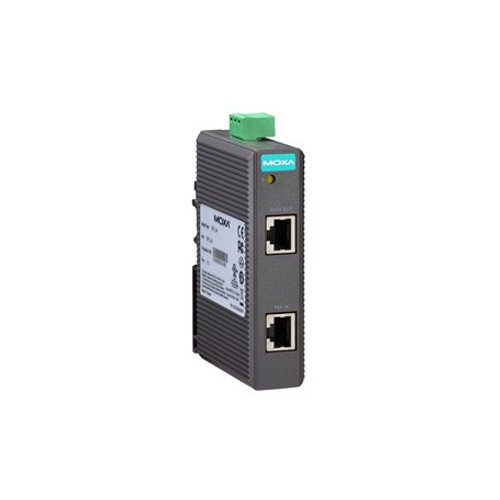

Image of SPL-24
Free Ground Shipping on U.S. Orders over $99 $265.31 ON BACKORDER Estimated Availability: 09/01/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-spl-24-series-spl-24-2d-cad.zip moxa-spl-24-series-datasheet-v1.1.pdf
  • IEEE 802.3af compliant; splits power and data from PoE equipment
  • Supports output power up to 12.95 W at 24 VDC
  • Short-circuit protection for power output
  • -40 to 75°C operating temperature range (-T model)
  • DIN-rail mounting ability
View More
Overview Specifications Accessories

Introduction

The main benefit of PoE is that it can transfer data and power to Ethernet-enabled devices using a standard Ethernet CAT5 cable. Moxa’s SPL-24 PoE splitters perform the role of powered devices (PDs) and split power from the injector to Ethernet devices. When using Moxa’s devices, power and data can be transmitted up to 100 meters (328 feet) from the power source equipment (PSE).

The standard model in can operate in temperatures from 0 to 60°C (32 to 140°F) and the wide-temperature model can operate in temperatures from -40 to 75°C (-40 to 167°F). In addition, the rugged hardware means that these devices will perform reliably even when used in demanding industrial applications.
