TAP-323-US-CT-T

Moxa TAP-323-US-CT-T

TAP-323 Series
802.11n Railway Trackside Out-door Dual Radio Access Point, coating, US band, IP68, -40 to 75°C

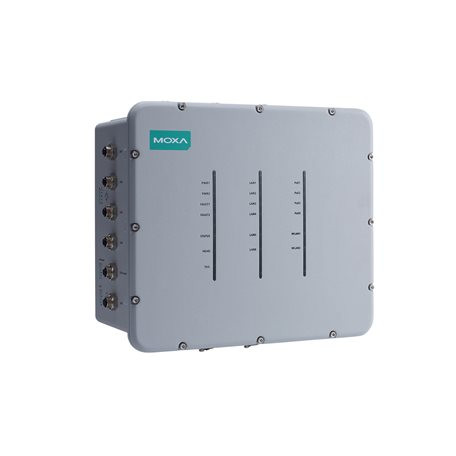

Image of TAP-323-US-CT-T
Free Ground Shipping on U.S. Orders over $99 $8,237.78 ON BACKORDER Estimated Availability: 02/22/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-tap-323-series-datasheet-v1.4.pdf
  • 2 dual-band radios, IEEE 802.11a/b/g/n compliant
  • Rugged IP68-rated housing and -40 to 75°C operating temperature
  • Controller-based Turbo Roaming (less than 50 ms) The Turbo Roaming recovery time indicated herein is an average of test results documented, in optimized conditions, across APs configured with interference-free 20-MHz RF channels, WPA2-PSK security, and default Turbo Roaming parameters. The clients are configured with 3-channel roaming at 100 Kbps traffic load. Other conditions may also impact roaming performance. For more information about Turbo Roaming parameter settings, refer to the product manual.
  • 2 fiber SFP slots and 4 PoE ports with M12 LAN connectors
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • Complies with EN 50121-4
  • Wireless network redundancy with AeroLink Protection
  • High transmission power for extended reach
View More
Overview Specifications Accessories

Introduction

The TAP-323trackside wireless unit is designed for train-to-ground wireless communication.The TAP-323 is a highly compact and rugged wireless unit that integratestwo access points, a managed fiber switch, and a wide-range AC/DCpower supply into one box. The IP68 housing allows the unit to withstandharsh weather conditions, and the M12 connectors make the unit shockand vibration resistant. The TAP-323 supports advanced controller-basedTurbo Roaming technology for train-to-ground wireless applicationssuch as communication-based train control (CBTC) and CCTV. The unitcan supply power to up to 4 PoE devices while providing reliable LANcommunication with Moxa’s Turbo Chain technology.

Advanced Mobilityand Reliability

  • Controller-based L3 Turbo Roaming

  • Mobile IP support

  • 2 dual-band radios: 2.4 GHz and5 GHz

  • Turbo Chain support (100 ms recoverytime)

  • WPA/WPA2 and 802.11i supported

  • IEEE 802.1X/RADIUS supported

Built for TransportationApplications

  • Isolated 110 to 220 VDC/VAC powerinput

  • High transmission power, 400 mW(max)

  • Supplies power through 4 PoE ports

  • 2 fiber SFP ports for backboneinstallation

  • Wide temperature (-40 to 75°C)range and IP68-rated housing
