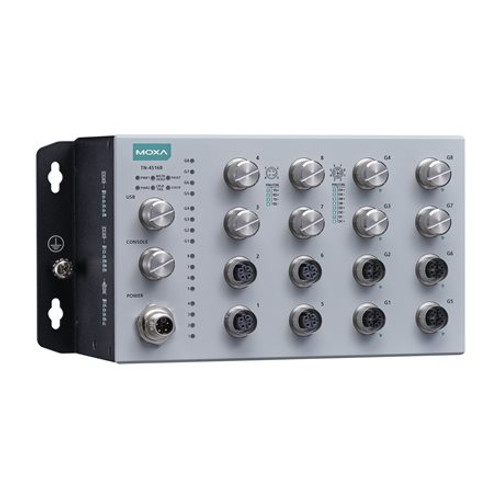

TN-4516B-CT-T

TN-4500B Series

TN-4516B-CT-T ; 16-ports L2 switch with 16FE, 24-110 VDC, Coating, -40~70?, IP42

Free Ground Shipping on U.S. Orders over $99 $2,981.00 ON BACKORDER Estimated Availability: 02/22/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART

Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-tn-4500b-series-datasheet-v1.1.pdf

Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
Up to 28 Ethernet ports with M12 push-pull connectors
Up to 8 Gigabit ports with optional dual relay bypass functionality
Up to 24 PoE ports with a 150 W total PoE power budget
Isolated power with 24 to 110 VDC power supply range
-40 to 70°C system operating temperature range
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
Powered by MX-NOS Rail Version, a comprehensive management firmware tailored to the unique demands of onboard railway networks

Overview Specifications Accessories

Introduction

The ToughNet TN-4500B Series M12 managed Ethernet switchesare designed for railway applications, including rolling stock installations.The switches use M12 circular connectors to ensure tight, robust connections,and guarantee reliable operation in industrial environments wherevibration and shock are commonplace. The TN-4500B Series Ethernetswitches provide 8 to 28 Ethernet ports with or without IEEE 802.3at/afcompliant PoE functionality. The Gigabit models further feature upto 8 Gigabit Ethernet ports.

The 24 to 110 VDC wide power inputrange and isolated dual power inputs not only allow you to use thesame type of power source at different sites around the globe, butalso increase the reliability of your communication systems. Furthermore,the -40 to 70°C operating temperature range of the switches ensuresthey can be deployed in harsh environments. TN-4500B Series Ethernetswitches are compliant with the mandatory sections of EN 50155, coveringoperating temperature, power input voltage, surge, ESD, and vibration,as well as conformal coating and power insulation, making the switchessuitable for a variety of industrial applications.
