2 to 4 Gigabit ports with bypass relay function on the bypass models
2 Gigabit fiber ports with embedded multi-mode Q-ODC® interface on fiber models
Up to 4 Gigabit ports with PoE function
Up to 20 IEEE 802.3at/af compliant combo PoE and Ethernet ports
Supports regular and push-pull M12 connectors
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) If the port link speed is 1 Gigabit or higher, the recovery time is < 50 ms. , and STP/RSTP/MSTP for network redundancy
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
Isolated power with 24 to 110 VDC power supply range
-40 to 70°C system operating temperature range

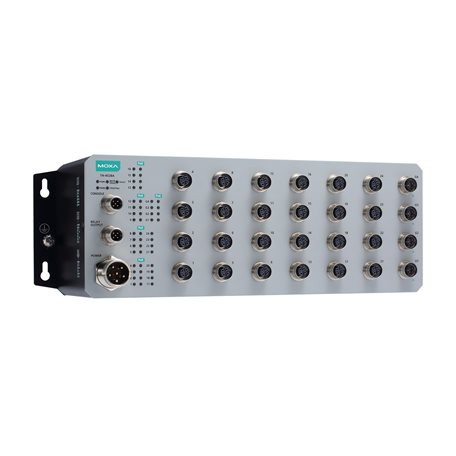

The ToughNet TN-4500A Series M12 managed Ethernet switches are designed for railway applications, including rolling stock and wayside installations. The switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. The TN-4500A Series Ethernet switches provide 12 or 24 fast Ethernet M12 ports with or without IEEE 802.3at/af compliant PoE functionality, and the Gigabit models have 4 Gigabit Ethernet interfaces with PoE and optional bypass relay functionality. In addition, the fiber models provide 2 Gigabit fiber interface ports with an embedded 2 km multimode fiber transceiver. The PoE switches are classified as power source equipment (PSE).
The switches provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones. The 24 to 110 VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communications system. Furthermore, the -40 to 70°C operating temperature range of the switches ensures they can withstand deployment in harsh environments. TN-4500A Series Ethernet switches are compliant with the mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.
Provides up to 30 watts per PoE port with a total power budget of 120 watts per switch
DHCP Option 82 for IP address assignment with different policies
IGMP snooping and GMRP for filtering multicast traffic
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic classification and prioritization
IEEE 802.3ad, LACP for optimum bandwidth utilization
SNMPv1/v2c/v3 for different levels of network management
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Lock port allows access by only authorized MAC addresses
Port mirroring for online debugging
Automatic warning by exception through email and relay output
Line-swap fast recovery
LLDP for automatic topology discovery in network management software
Configurable by web browser, Telnet/serial console, CLI, and Windows utility
Loop protection to prevent network loops
Wall mounting installation capability
