TN-5308A-WV-T

TN-5308A-WV-T

TN-5300A Series
TN-5308A-WV-T ; EN 50155 unmanaged Ethernet switch with 8 10/100BaseT(X) ports, M12 connector, single power input, 24 to 110 VDC, -40 to 70°C operating temperature

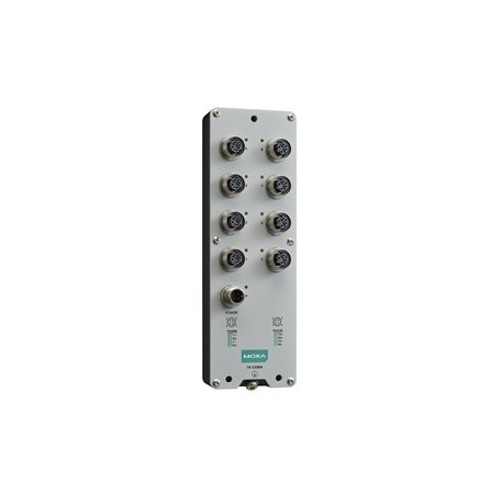

Image of TN-5308A-WV-T
Free Ground Shipping on U.S. Orders over $99 $830.00 ON BACKORDER Estimated Availability: 02/23/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-tn-5300a-series-datasheet-v1.1.pdf
  • Rugged die-cast design for use in harsh environments
  • Isolated power input range from 24 to 110 VDC
  • Supports regular and push-pull M12 connectors
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • -40 to 70°C wide-temperature design
View More
Overview Specifications Accessories

Introduction

The ToughNet TN-5300A Series M12 unmanaged Ethernet switchesare designed for industrial applications in harsh environments. TheTN-5300A Series switches use M12 connectors to ensure tight, robustconnections, and guarantee reliable resistance against environmentaldisturbances, such as vibration and shock. The TN-5300A Series Ethernetswitches provide 5 or 8 Fast Ethernet M12 ports, support IEEE 802.3/802.3u/802.3xwith 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and providean economical solution for your industrial Ethernet network.

All TN-5300A Series models supportan extended operating temperature range of -40 to 70°C. The TN-5300ASeries also comply with all mandatory requirements of the EN 50155standard including operating temperature, power input voltage, surge,ESD, and vibration, making these switches suitable for rolling stockand a variety of other industrial applications.

The TN-5300A Series features a singlepower input with overload, reverse polarity, and inrush current protection.Additionally, the TN-5308A PoE models provide 8 IEEE 802.3af/at compliantPoE ports. These switches are classified as power source equipment(PSE) and provide up to 30 watts of power per port and have a totalpower PoE budget of 50.2 Watts.
