TN-G4516-8GPoE-2XGPoE-2XGTXBP-WV-CT-T

Moxa TN-G4516-8GPoE-2XGPoE-2XGTXBP-WV-CT-T

TN-G4500 Series
L2 switch, 12 Giga ports 8 Giga with PoE, 4 10G ports, 2 with PoE and 2 with bypass, -40 to 70℃, coating

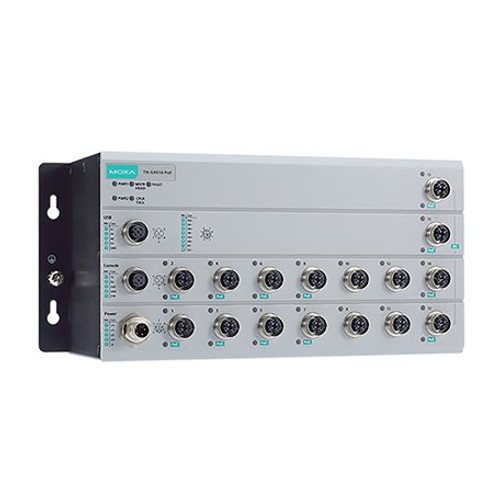

Image of TN-G4516-8GPoE-2XGPoE-2XGTXBP-WV-CT-T
Free Ground Shipping on U.S. Orders over $99 $7,546.35 IN STOCK: 0 Units

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-tn-g4500-series-datasheet-v1.3.pdf
  • 4 10G ports and 12 Gigabit ports with push-pull M12 connectors
  • Isolated power with 24 to 110 VDC power supply range
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • -40 to 70°C operating temperature range
  • Turbo Ring and Turbo Chain (recovery time
  • 12 IEEE 802.3at/af compliant PoE and Ethernet combo ports
  • Provides up to 30 W per PoE port
View More
Overview Specifications Accessories

Introduction

The ToughNetTN-G4500 Series M12 managed Ethernet switches are designed for railwayapplications, including rolling stock and wayside installations. Theseswitches are equipped with M12 and similar circular connectors toensure tight, robust connections, and guarantee reliable operationin industrial environments where vibrations and shock are commonplace.The TN-G4500 Series Ethernet switches provide 4 10G Ethernet M12 portswith PoE functionality, 16 Gigabit Ethernet M12 ports, and 8 portswith PoE functionality. These PoE switches are classified as powersource equipment (PSE), capable of providing up to 30 watts of powerper port to IEEE 802.3at/af-compliant powered devices (PDs), suchas IP cameras and wireless access points.

The TN-G4500 Series has M12 connectors that are tailor-made for push-pullcables to facilitate quick installation and allow M12 rotary cablesto be utilized. The 24 to 110 VDC wide power input range and isolateddual power inputs not only allow you to use the same type of powersource at different sites around the globe, but also increase thereliability of your communications system. Furthermore, the -40 to70°C wide operating temperature range allows deployment in harsh environments.The TN-G4500 Series complies with the essential sections of the EN50155 standard, covering operating temperature, power input voltage,surge, ESD, vibration, power isolation, and features models with conformalcoating to ensure suitability for a variety of industrial applications.

Additional Featuresand Benefits

  • Provides up to 30 watts per PoEport with a total power budget of 120 watts per switch

  • DHCP Option 82 for IP address assignmentwith different policies

  • IGMP snooping and GMRP for filteringmulticast traffic

  • Supports the EtherNet/IP and Modbus/TCPindustrial Ethernet protocols

  • Port-based VLAN, IEEE 802.1Q VLAN,and GVRP to ease network planning

  • QoS (IEEE 802.1p/1Q and ToS/DiffServ)allows real-time traffic classification and prioritization

  • IEEE 802.3ad LACP for optimal bandwidthutilization

  • SNMPv1/v2c/v3 for different levelsof network management

  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS,and SSH to enhance network security

  • RMON for efficient network monitoringand proactive capability

  • Bandwidth management prevents unpredictablenetwork conditions

  • Port locking to only allow accessto authorized MAC addresses

  • Port mirroring for online debugging

  • Automatic warning notificationsthrough email

  • Line-swap fast recovery

  • LLDP for automatic topology discoveryin network management software

  • Configurable by web browser, Telnet/serialconsole, CLI, and Windows utility

  • Loop protection to prevent networkloops

  • Wall mounting installation
