TN-G6512-8GPoE-WV-T

Moxa TN-G6512-8GPoE-WV-T

TN-G6500 Series
L2 Managed Ethernet switch, 8 * 10/100/1000BaseT(X) with 802.3at PoE+ and 4 * 10/100/1000 BaseT(X) M12 connectors, power input 24 - 110 VDC, -40 to 70°C operation temperature

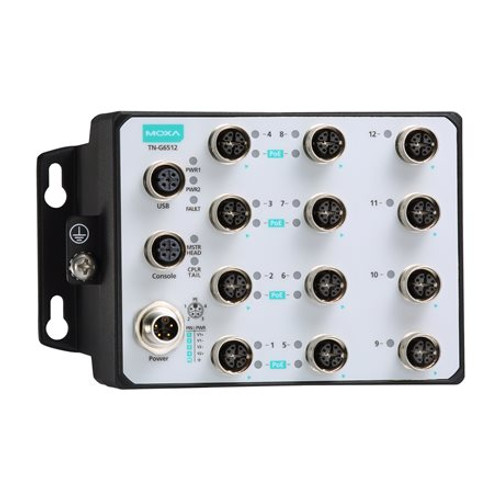

Image of TN-G6512-8GPoE-WV-T
Free Ground Shipping on U.S. Orders over $99 $4,322.85 IN STOCK: 0 Units

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-tn-g6500-series-datasheet-v1.4.pdf
  • 12 Gigabit ports with push-pull M12 connectors
  • Isolated power with 24 to 110 VDC power supply range
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • -40 to 70°C operating temperature range
  • IP67-rated housing protection
  • Turbo Ring and Turbo Chain (recovery time
  • 8 IEEE 802.3at/af compliant PoE and Ethernet combo ports
  • Provides up to 30 W per PoE port
View More
Overview Specifications Accessories

Introduction

The ToughNetTN-G6500 Series M12 managed Ethernet switches are designed for railwayapplications, including rolling stock and wayside installations. Theswitches use M12 and other circular connectors to ensure tight, robustconnections, and guarantee reliable operation in industrial environmentswhere vibration and shock are commonplace. The TN-G6500 Series Ethernetswitches provide 12 Gigabit Ethernet M12 ports; 8 ports support IEEE802.3at/af-compliant PoE functionality. These PoE switches are classifiedas power source equipment (PSE); they provide up to 30 watts of powerper port, and can be used to power IEEE 802.3at/af-compliant powereddevices (PDs), such as IP cameras, wireless access points, and IPphones.

The TN-G6500 Series has push-pullM12 connectors that are tailor-made for push-pull cables in orderto facilitate quick installation, and also allow M12 rotary cablesto be utilized. The 24 to 110 VDC wide power input range and isolateddual power inputs not only allow you to use the same type of powersource at different sites around the globe, but also increase thereliability of your communications system. Furthermore, the -40 to70°C operating temperature and IP67-rated enclosure allow deploymentin harsh environments. The TN-G6512 Series Ethernet switches are compliantwith the essential sections of the EN 50155 standard, covering operatingtemperature, power input voltage, surge, ESD, vibration, power isolation,and includes a model with conformal coating to ensure suitabilityfor a variety of industrial applications.

Additional Featuresand Benefits

  • Provides up to 30 watts per PoEport with a total power budget of 96 watts per switch

  • IPv6 Ready logo awarded (IPv6 LogoCommittee certified)

  • DHCP Option 82 for IP address assignmentwith different policies

  • IGMP snooping and GMRP for filteringmulticast traffic

  • EtherNet/IP and Modbus/TCP industrialEthernet protocols supported

  • Port-based VLAN, IEEE 802.1Q VLAN,and GVRP to ease network planning

  • QoS (IEEE 802.1p/1Q and ToS/DiffServ)allows real-time traffic classification and prioritization

  • IEEE 802.3ad, LACP for optimalbandwidth utilization

  • SNMPv1/v2c/v3 for different levelsof network management

  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS,and SSH to enhance network security

  • RMON for efficient network monitoringand proactive capability

  • Bandwidth management prevents unpredictablenetwork conditions

  • Port locking to only allow accessto authorized MAC addresses

  • Port mirroring for online debugging

  • Automatic warning notificationsthrough email and relay output

  • Line-swap fast recovery

  • LLDP for automatic topology discoveryin network management software

  • Configurable by web browser, Telnet/serialconsole, CLI, and Windows utility

  • Loop protection to prevent networkloops

  • Panel mounting installation
