UC-2222A-T

Moxa UC-2222A-T

UC-2200A Series
UC-2222A-T ; Arm-based DIN-rail industrial computer with wide operating temperature, Cortex-A53 dual-core 64-bit 1 GHz CPU, 2GB RAM, 2 serial ports, 2 Ethernet ports, TPM, and Linux pre-installed (QTC)

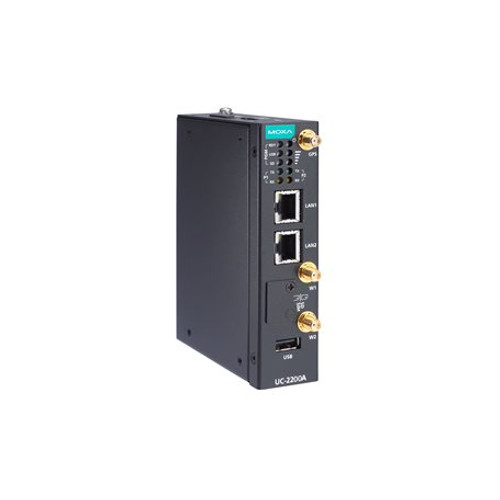

Image of UC-2222A-T
Free Ground Shipping on U.S. Orders over $99 $444.00 ON BACKORDER Estimated Availability: 02/27/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ON ORDER: 9 Units
ADD TO CART

Features and Benefits

moxa-uc-2200a-series-datasheet-v1.2.pdf
  • Armv8 Cortex-A53 dual-core 1 GHz processor
  • 2 auto-sensing 10/100/1000 Mbps Ethernet ports
  • Rich programmable LEDs and a programmable button for easy installation and maintenance
  • LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
  • -40 to 75°C operating temperature range
  • Long-term Linux support until 2031; includes bug fixes and security patches
View More
Overview Specifications Accessories

Introduction

The UC-2200A computing platform is designed for embeddeddata acquisition applications. The computer comes with dual RS-232/422/485serial ports and dual 10/100/1000 Mbps Ethernet ports, as well asa Mini PCIe socket to support a wireless module. These versatile capabilitieslet users efficiently adapt the UC-2200A to a variety of complex communicationssolutions.

The UC-2200Ais built around a Cortex-A53 processor that has been optimized foruse in energy monitoring systems, but is widely applicable to a varietyof industrial solutions. With flexible interfacing options, this tinyembedded computer is a reliable and secure gateway for data acquisitionand processing at field sites as well as a useful communications platformfor many other large-scale deployments.

Wide-temperature and LTE-enabledmodels are available. All units are thoroughly tested in a testingchamber, guaranteeing that the LTE-enabled computing platforms aresuitable for wide-temperature applications.

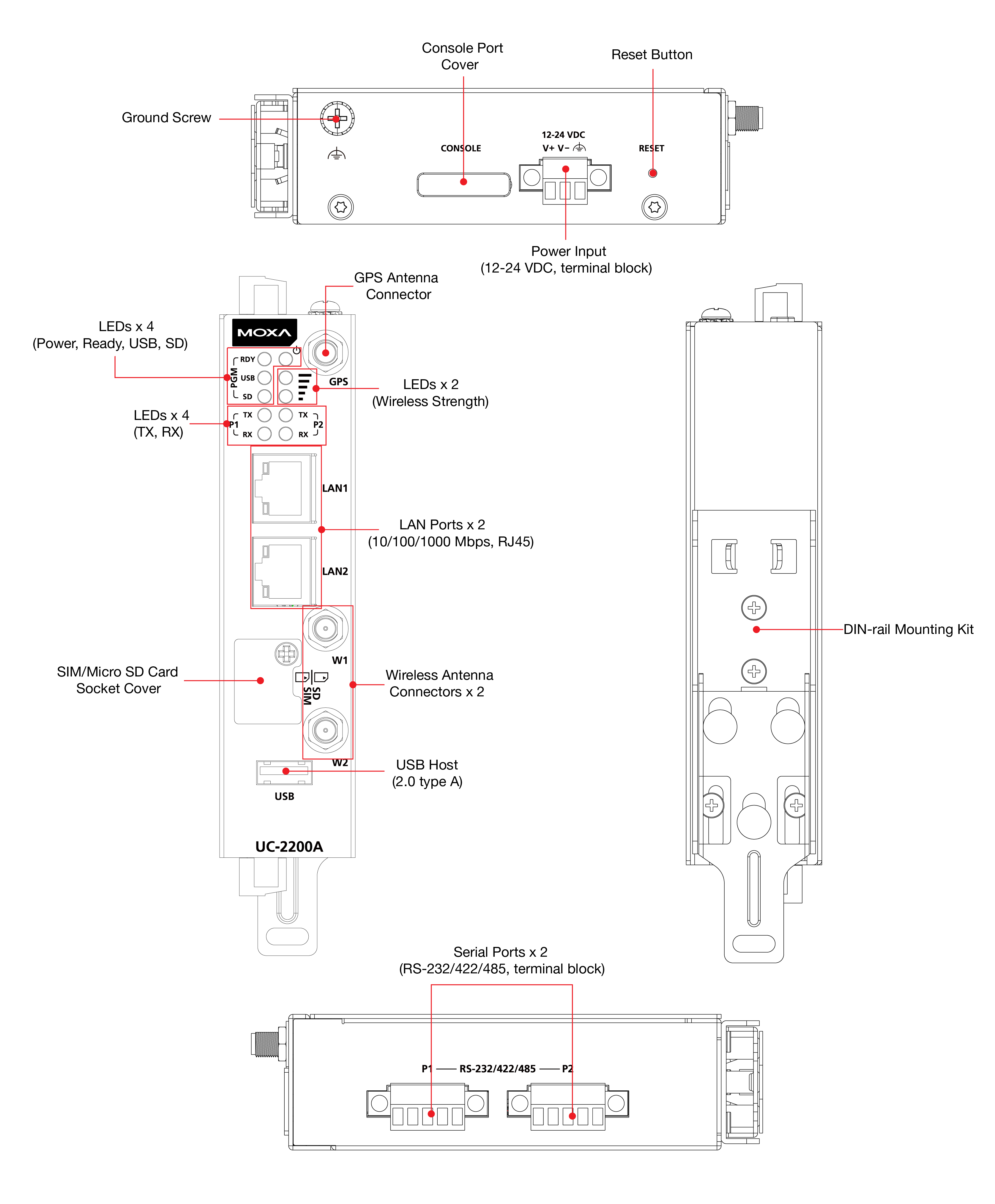

Appearance
