Moxa UC-3111-T-US-LX-NW

UC-3100 Series

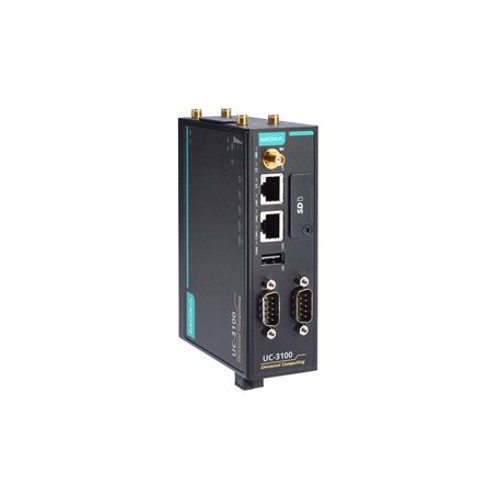

UC-3111-T-US-LX-NW ; Arm-based wireless-enabled DIN-rail industrial computer with wide operating temperature, 2 serial ports, 2 LAN ports, CAT.1 LTE module for US built-in and MOXA Industrial Linux pre-installed, w/o WiFi, BLE.

Free Ground Shipping on U.S. Orders over $99 $685.65 IN STOCK: 36 Units

Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.

ADD TO CART

Features and Benefits

moxa-uc-3100-series-datasheet-v3.1.pdf

Armv7 Cortex-A8 1000 MHz processor
Integrated Wi-Fi 802.11a/b/g/n and LTE Cat. 1 for the US, EU, and APAC regions
Bluetooth 4.2 support
LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
Industrial CAN 2.0 A/B protocols supported
-40 to 70°C operating temperature range
Meets the EN 61000-6-2 and EN 61000-6-4 standards for industrial EMC applications
Long-term Linux support until 2027; includes bug fixes and security patches

Overview Specifications Accessories

Introduction

Moxa’s UC-3100 Series computers can be used as smartgateways in the field for data pre-processing and transmission, aswell as for other embedded data-acquisition applications. The seriesincludes a diverse set of models, each supporting different wirelessoptions and protocols. The UC-3100’s advanced heat-dissipation designmakes it suitable for use in temperatures ranging from -40 to 70°C.In fact, the Wi-Fi and LTE connections can be used simultaneouslyin both cold and hot environments, allowing you to maximize data pre-processingand transmission capabilities of your applications in harsh operatingenvironments.

TheUC-3100 is more than just a hardware solution. In order to offer abetter user experience with a Moxa Arm-based computer, the UC-3100comes equipped with Moxa Industrial Linux, a high-performance industrial-gradeLinux distribution with long-term support that is developed by Moxa.
