UC-5101-LX

Moxa UC-5101-LX

UC-5100 Series
Arm-based DIN-rail industrial computer with 4 serial ports, 2 LANs, 4 DI/DOs, and MOXA Industrial Linux pre-installed

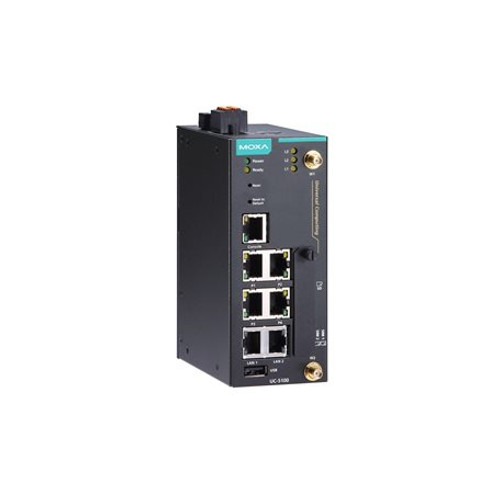

Image of UC-5101-LX
Free Ground Shipping on U.S. Orders over $99 $499.01 ON BACKORDER Estimated Availability: 02/27/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-uc-5100-series-datasheet-v2.1.pdf
  • Armv7 Cortex-A8 1000 MHz processor
  • Dual auto-sensing 10/100 Mbps Ethernet ports
  • 4 software-selectable RS-232/422/485 ports supporting all signals
  • Dual CAN ports with industrial CAN 2.0 A/B protocol supported
  • Mini PCIe socket for Wi-Fi/cellular module
  • SD slot for storage expansion
  • -40 to 85°C wide temperature range and -40 to 70°C with LTE enabled
  • IEC 61000-6-2/6-4 standards for harsh industrial environments
  • Long-term Linux support until 2027; includes bug fixes and security patches
View More
Overview Specifications Accessories

Introduction

The UC-5100 Series embedded computers are designed for industrialautomation applications. The computers feature 4 RS-232/422/485 fullsignal serial ports with adjustable pull-up/pull-down resistors, 2CAN ports, 2 Ethernet ports, 4 digital input channels, 4 digital outputchannels, USB interface, and an SD slot in a compact, front-end accesshousing. To fulfill various industrial applications, the UC-5100 Seriescomputing platform provides models with 2 CAN ports and a mini PCIeslot for wireless connections featuring a dual-SIM design for networkredundancy. The UC-5100’s vertical DIN-rail form factor makes it easyto install the computer in a small cabinet. This space-saving solutionalso facilitates easy wiring, making the UC-5100 a great choice asfront-end embedded controllers for industrial applications. Furthermore,all models are equipped with Moxa Industrial Linux that comes with10-year long-term support as well as optimized software features.

Appearance

UC-5101

UC-5102

UC-5111

UC-5112
