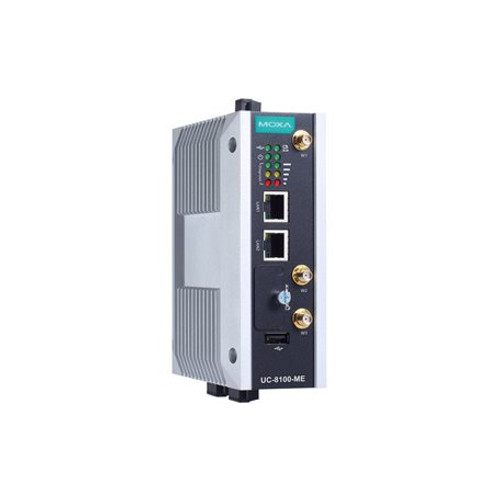

UC-8100 Series

Moxa UC-8100 Series

Arm Cortex-A8 300 MHz/600 MHz/1 GHz IIoT gateways with 1 Mini PCIe expansion slot for a wireless module, -10 to 60°C operating temperature
UC-8100 Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-uc-8100-series-datasheet-v2.0.pdf
  • Armv7 Cortex-A8 300/600/1000 MHz processor
  • Dual auto-sensing 10/100 Mbps Ethernet ports
  • Rich programmable LEDs and a programmable button for easy installation and maintenance
  • Long-term Linux support until 2027; includes bug fixes and security patches
  • Debian 9 open platform
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

The UC-8100 computing platform is designed forembedded data-acquisition applications. The computer comes with oneor two RS-232/422/485 serial ports and dual 10/100 Mbps Ethernet LANports, as well as a mini PCIe slot to support cellular modules. Theseversatile communication capabilities let users efficiently adapt theUC-8100 to a variety of complex communications solutions.

The UC-8100 is built arounda Cortex-A8 Arm–based processor that has been optimized for use inenergy monitoring systems, but is widely applicable to a variety ofindustrial solutions. With flexible interfacing options, this tinyembedded computer is a reliable and secure gateway for data acquisitionand processing at field sites as well as a useful communication platformfor many other large-scale deployments.

Appearance

Front View

Top View

Bottom View
