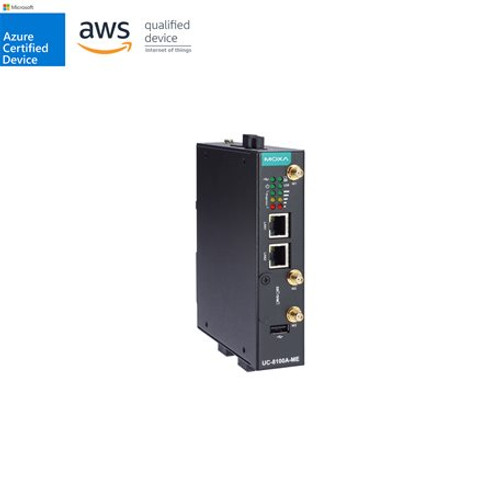

UC-8100A-ME-T Series

Moxa UC-8100A-ME-T Series

Arm Cortex-A8 1 GHz IIoT gateways with built-in LTE Cat. 4, -40 to 70°C operating temperature
UC-8100A-ME-T Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-uc-8100a-me-t-series-datasheet-v3.0.pdf
  • Armv7 Cortex-A8 1000 MHz processor
  • Dual auto-sensing 10/100 Mbps Ethernet ports
  • SD slot for storage expansion
  • Programmable LEDs and a programmable button for easy installation and maintenance
  • Mini-PCIe slot for wireless module
  • LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
  • -40 to 70°C wide-temperature range with LTE enabled
  • Long-term Linux support until 2027; includes bug fixes and security patches
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

The UC-8100A-ME-T computing platform is designedfor embedded data acquisition applications. The computer comes withdual RS-232/422/485 serial ports and dual 10/100 Mbps Ethernet ports,as well as a Mini PCIe socket to support cellular modules. These versatilecapabilities let users efficiently adapt the UC-8100A-ME-T to a varietyof complex communications solutions.

The UC-8100A-ME-T is built arounda Cortex-A8 processor that has been optimized for use in energy monitoringsystems, but is widely applicable to a variety of industrial solutions.With flexible interfacing options, this tiny embedded computer isa reliable and secure gateway for data acquisition and processingat field sites as well as a useful communications platform for manyother large-scale deployments.

Wide-temperature and LTE-enabled models are available.All units are thoroughly tested in a testing chamber, guaranteeingthat the LTE-enabled computing platforms are suitable for wide-temperatureapplications.

Appearance
