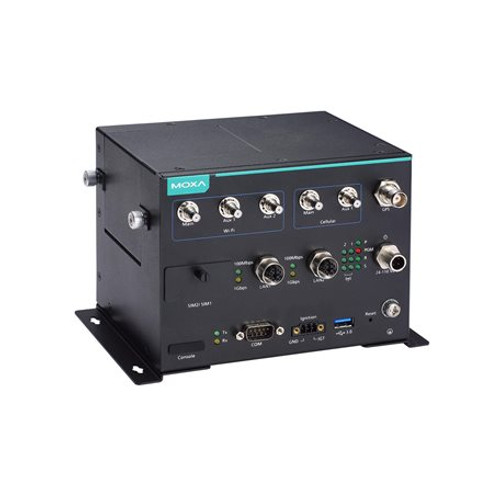

UC-8540 Series

Moxa UC-8540 Series

Arm Cortex-A7 dual-core 1 GHz train-to-ground computers with 2 Mini PCIe expansion slots for wireless modules
UC-8540 Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-uc-8540-series-datasheet-v1.6.pdf
  • Supports 1 WWAN connection with 2 SIM card slots
  • Supports 1 WLAN (IEEE 802.11 a/b/g/n/ac) connection
  • Single-panel I/O design for reduced installation space and easier maintenance
  • Front-side access panel for easy maintenance
  • Isolated 24 to 110 VDC power input with power-ignition function suitable for vehicle applications
  • EN 50155 Tx (-40 to 70°C) operating temperature for harsh environments
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • 5-year warranty
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

Moxa’s UC-8540is an innovative computing platform designed specifically for transportationapplications. Its single-sided I/O design is ideal for vehicle applications,which typically do not have enough room for installing communicationdevices. Front-side access makes it easy to install or change SIMcards and wiring cables. Users can install or change wireless modules,mSATA cards, and the RTC battery from the top or the bottom for easymaintenance.

The UC-8540has 1 miniPCIe slot with USB signal to support a 4G/LTE module, and1 slot with PCIe/USB signal to support a Wi-Fi module. The 4G/LTEmodule has two SIM card slots, which can be used to enable redundantcellular network communications or geo-fencing SIM card selectionby leveraging the built-in MIRF 2.0, a Moxa device remote-managementplatform with wireless management.

TheUC-8540 can be used as a communication-centric computing platformin applications such as vehicle-to-ground communication gateway, TCMST2G (train-to-ground) gateway, mobile condition monitoring unit, EthernetConsist Network T2G gateway, and onboard wireless automated fare collectionunit. Wireless modules are sold separately. Please contact a Moxasales representative for details.

The UC-8540 uses an open platform based on Debian 8 with Linux kernel4.1, allowing solution providers to manage software packages via Debian’sAPT (advanced packaging tools), or develop software applications withMoxa’s API Library and GNU C Library.

Appearance
