UPort 1250-G2

Moxa UPort 1250-G2

UPort 1200-G2 Series
UPort 1250-G2 ; USB to 2-port RS-232/422/485 serial converter

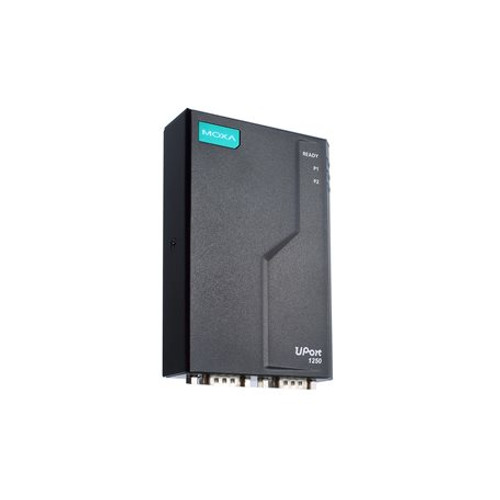

Image of UPort 1250-G2
Free Ground Shipping on U.S. Orders over $99 $207.00 ON BACKORDER Estimated Availability: 02/22/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-uport-1200-g2-series-datasheet-v1.1.pdf
  • USB 3.2 SuperSpeed capability
  • 50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)
  • 512-byte on-chip FIFO cache and flow control for enhanced performance
  • Double-sided LEDs located at the corners show power, TX, and RX statuses in either directions
  • Drivers provided for a broad selection of operating systems, including Windows and Linux
  • Latching USB cable design for firmer connection
  • Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
  • Serial port with 2 kV isolation protection (for “-I” models)
View More
Overview Specifications Accessories

Introduction

The UPort® 1200-G2 Series USB-to-serial converters are ideal forlaptop or workstation computers that need serial port expansion. Theyare essential for computers which need to connect different serialdevices in the field or need separate interface converters for deviceswithout a standard COM port or DB9 connector. The computers also comewith a USB cable that has a latch and screw lock for a more secureconnection between the UPort and your computer. The UPort® 1200-G2Series converts from USB to RS-485. All products are compatible withlegacy serial devices and can be used with instrumentation and point-of-saleapplications.
