UPort 1650-8-G2-Hub

Moxa UPort 1650-8-G2-Hub

UPort 1600-8-G2 Series
UPort 1650-8-G2-Hub ; USB to 8-port RS-232/422/485 serial hub, with 3 downstream USB type A ports

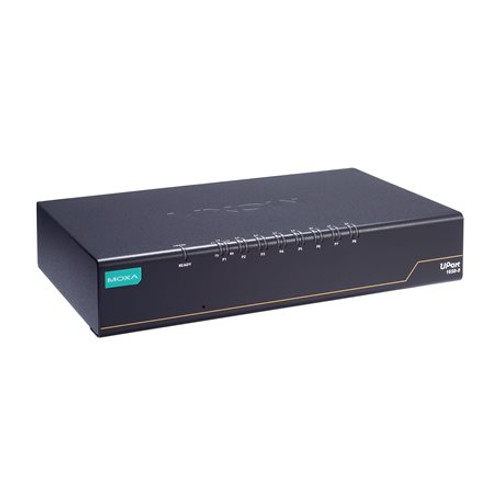

Image of UPort 1650-8-G2-Hub
Free Ground Shipping on U.S. Orders over $99 $710.48 ON BACKORDER Estimated Availability: 02/22/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-uport-1600-8-g2-series-datasheet-v1.2.pdf
  • USB 3.2 SuperSpeed capability
  • 512-byte on-chip FIFO cache and flow control for enhanced performance
  • Drivers provided for a broad selection of operating systems, including Windows and Linux
  • 50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)
  • Double-sided LEDs located at the corners show power, TX, and RX statuses in either directions
  • Cascading of up to 32 ports without requiring additional power adaptors
  • Latching USB cable design for firmer connection
  • Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
  • Serial port with 2 kV isolation protection (for “-I” models)
View More
Overview Specifications Accessories

Introduction

The UPort® 1600-8-G2 Series USB-to-serial converters are ideal forlaptop or workstation computers that need serial port expansion. Theyare essential for computers which need to connect different serialdevices in the field or need separate interface converters for deviceswithout a standard COM port or DB9 connector. The computers also comewith a USB cable that has a latch and screw lock for a more secureconnection between the UPort and your computer. With the cascadingcapability of the UPort® 1650-8-G2-Hub, you can link up to 32 serialports without a power adaptor to the UPort. The UPort® 1600-8-G2 Seriesconverts from USB to RS-232/422/485. All products are compatible withlegacy serial devices and can be used with instrumentation and point-of-saleapplications.
